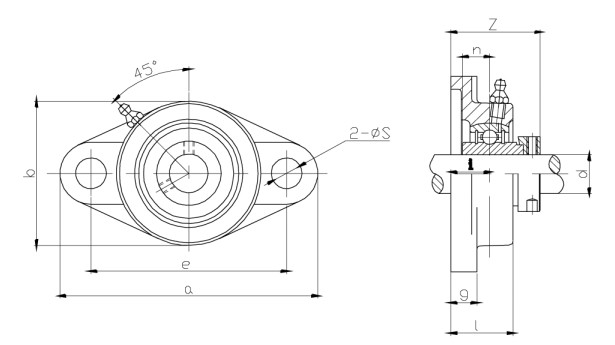

2 Bolt Flange Units: HCFLU
| Unit NO. | Ncej Dia d | Qhov Loj (mm) | Bolt Loj mm nti | Bearing No. | Tsev Tsis muaj. | |||||||||
| mm | nti | a | e | b | i | g | L | s | z | n | ||||
| HCFLU 202 | 15 | 99 | 76.5 ib | 57 | 15 | 11 | 25.5 ib | 11.5 | 38.4 ib | 13.9 Nws | M10 | TIAB SA 202 | FLU 203 | |
| HCFLU202-10 | 5/8 | 99 | 76.5 ib | 57 | 15 | 11 | 25.5 ib | 11.5 | 38.4 ib | 13.9 Nws | 3/8 | HC202-10 | FLU 203 | |
| HCFLU 203 | 17 | 99 | 76.5 ib | 57 | 15 | 11 | 25.5 ib | 11.5 | 38.4 ib | 13.9 Nws | M10 | TIAB SA 203 | FLU 203 | |
| HCFLU203-11 | 11/16 | 99 | 76.5 ib | 57 | 15 | 11 | 25.5 ib | 11.5 | 38.4 ib | 13.9 Nws | 3/8 | HC203-11 | FLU 203 | |
| HCFLU 204 | 20 | 112.5 ib | 90 | 61 | 19 | 15 | 29.5 ib | 11.5 | 45.5 ib | 17 | M10 | TIAB SA 204 | FLU 204 | |
| HCFLU204-12 | 3/4 | 112.5 ib | 90 | 61 | 19 | 15 | 29.5 ib | 11.5 | 45.5 ib | 17 | 3/8 | HC204-12 | FLU 204 | |
| HLB 205 | 25 | 123 | 99 | 70 | 19 | 15 | 30 | 11.5 | 45.9 ua | 17.4 ib | M10 | TIAB SA 205 | FLU 205 | |
| HCFLU205-14 | 7/8 | 123 | 99 | 70 | 19 | 15 | 30 | 11.5 | 45.9 ua | 17.4 ib | 3/8 | HC205-14 | FLU 205 | |
| HCFLU205-15 | 15/16 | 123 | 99 | 70 | 19 | 15 | 30 | 11.5 | 45.9 ua | 17.4 ib | 3/8 | HC205-15 | FLU 205 | |
| HCFLU205-16 | 1 | 123 | 99 | 70 | 19 | 15 | 30 | 11.5 | 45.9 ua | 17.4 ib | 3/8 | HC205-16 | FLU 205 | |
| HCFLU 206 | 30 | 142 | 116.5 ib | 82 | 20 | 16 | 32.5 ib | 11.5 | 50.1 ib | 18.2 ib | M10 | TIAB SA 206 | FLU 206 | |
| HCFLU206-18 | 1-1/8 | 142 | 116.5 ib | 82 | 20 | 16 | 32.5 ib | 11.5 | 50.1 ib | 18.2 ib | 3/8 | HC206-18 | FLU 206 | |
| HCFLU206-19 | 1-3/16 | 142 | 116.5 ib | 82 | 20 | 16 | 32.5 ib | 11.5 | 50.1 ib | 18.2 ib | 3/8 | HC206-19 | FLU 206 | |
| HCFLU206-20 | 1-1/4 | 142 | 116.5 ib | 82 | 20 | 16 | 32.5 ib | 11.5 | 50.1 ib | 18.2 ib | 3/8 | HC206-20 | FLU 206 | |
| HLB 207 | 35 | 158 | 130 | 94 | 21 | 17 | 36 | 14 | 5 3.3 | 18.8 ib | M12 | TIAB SA 207 | FLU 207 | |
| HCFLU207-20 | 1-1/4 | 158 | 130 | 94 | 21 | 17 | 36 | 14 | 5 3.3 | 18.8 ib | 1/2 | HC207-20 | FLU 207 | |
| HCFLU207-21 | 1-5/16 | 158 | 130 | 94 | 21 | 17 | 36 | 14 | 5 3.3 | 18.8 ib | 1/2 | HWV 207-21 | FLU 207 | |
| HCFLU207-22 | 1-3/8 | 158 | 130 | 94 | 21 | 17 | 36 | 14 | 5 3.3 | 18.8 ib | 1/2 | HWV 207-22 | FLU 207 | |
| HCFLU207-23 | 1-7/16 | 158 | 130 | 94 | 21 | 17 | 36 | 14 | 5 3.3 | 18.8 ib | 1/2 | HWV 207-23 | FLU 207 | |
| HLB 208 | 40 | 172 | 143.5 ib | 103 | 24 | 17 | 39 | 14 | 58.9 ua | 21.4 ib | M12 | TIAB SA 208 | FLU 208 | |
| HCFLU208-24 | 1-1/2 | 172 | 143.5 ib | 103 | 24 | 17 | 39 | 14 | 58.9 ua | 21.4 ib | 1/2 | HC208-24 | FLU 208 | |
| HCFLU208-25 | 1-9/16 | 172 | 143.5 ib | 103 | 24 | 17 | 39 | 14 | 58.9 ua | 21.4 ib | 1/2 | HC208-25 | FLU 208 | |
| HLB 209 | 45 | 180 | 148.5 ib | 108 | 24 | 18 | 40 | 16 | 58.9 ua | 21.4 ib | M16 | TIAB SA 209 | FLU 209 | |
| HCFLU209-26 | 1-5/8 | 180 | 148.5 ib | 108 | 24 | 18 | 40 | 16 | 58.9 ua | 21.4 ib | 5/8 | HC209-26 | FLU 209 | |
| HCFLU209-27 | 1-11/16 | 180 | 148.5 ib | 108 | 24 | 18 | 40 | 16 | 58.9 ua | 21.4 ib | 5/8 | HWV 209-27 | FLU 209 | |
| HCFLU209-28 | 1-3/4 | 180 | 148.5 ib | 108 | 24 | 18 | 40 | 16 | 58.9 ua | 21.4 ib | 5 xh8 | HC209-28 | FLU 209 | |
| HCFLU 210 | 50 | 190 | 157 | 114 | 28 | 20 | 45 | 18 | 66.1 ib | 24.6 ib | M16 | HWV 210 | FLU 210 | |
| HCFLU210-30 | 1-7/8 | 190 | 157 | 114 | 28 | 20 | 45 | 18 | 66.1 ib | 24.6 ib | 5/8 | HC210-30 | FLU 210 | |
| HCFLU210-31 | 1-15/16 | 190 | 157 | 114 | 28 | 20 | 45 | 18 | 66.1 ib | 24.6 ib | 5/8 | HWV 210-31 | FLU 210 | |
| HCFLU210-32 | 2 | 190 | 157 | 114 | 28 | 20 | 45 | 18 | 66.1 ib | 24.6 ib | 5/8 | HC210-32 | FLU 210 | |
| HCFLU 211 | 55 | 217 | 184 | 128 | 31 | 21 | 48 | 18 | 74.6 ib | 27.7 ib | M16 | TIAB SA 211 | FLU 211 | |
| HCFLU211-32 | 2 | 217 | 184 | 128 | 31 | 21 | 48 | 18 | 74.6 ib | 27.7 ib | 5/8 | HWV 211-32 | FLU 211 | |
| HCFLU211-34 | 2-1/8 | 217 | 184 | 128 | 31 | 21 | 48 | 18 | 74.6 ib | 27.7 ib | 5/8 | HWV 211-34 | FLU 211 | |
| HCFLU211-35 | 2-3/16 | 217 | 184 | 128 | 31 | 21 | 48 | 18 | 74.6 ib | 27.7 ib | 5/8 | HWV 211-35 | FLU 211 | |
| HCFLU 212 | 60 | 237 | 202 | 138 | 34 | 21 | 53 | 18 | 80.8 ua | 30.9 ib | M16 | TIAB SA 212 | FLU 212 | |
| HCFLU212-36 | 2-1/4 | 237 | 202 | 138 | 34 | 21 | 53 | 18 | 80.8 ua | 30.9 ib | 5/8 | HWV 212-36 | FLU 212 | |
| HCFLU212-38 | 2-3/8 | 237 | 202 | 138 | 34 | 21 | 53 | 18 | 80.8 ua | 30.9 ib | 5/8 | HWV 212-38 | FLU 212 | |
| HCFLU212-39 | 2-7/16 | 237 | 202 | 138 | 34 | 21 | 53 | 18 | 80.8 ua | 30.9 ib | 5/8 | HC212-39 | FLU 212 | |
| HLB 213 | 65 | 256 | 210 | 152 | 38 | 22 | 56 | 21 | 89.6 ib | 34.1 ib | M18 | TIAB SA 213 | FLU 213 | |
| HCFLU213-40 | 2-1/2 | 256 | 210 | 152 | 38 | 22 | 56 | 21 | 89.6 ib | 34.1 ib | M18 | HWV 213-40 | FLU 213 | |
| HLB 214 | 70 | 264 | 216 | 157 | 38 | 23 | 58 | 21 | 89.6 ib | 34.1 ib | M18 | TIAB SA 214 | FLU 214 | |
| HCFLU214-44 | 2-3/4 | 264 | 216 | 157 | 38 | 23 | 58 | 21 | 89.6 ib | 34.1 ib | M18 | HWV 214-44 | FLU 214 | |
| HCFLU 215 | 75 | 275 | 225 | 164 | 41 | 24 | 62 | 21 | 95.8 ua | 37.3 ib | M18 | TIAB SA 215 | FLU 215 | |
| HCFLU215-47 | 2-15/16 | 275 | 225 | 164 | 41 | 24 | 62 | 21 | 95.8 ua | 37.3 ib | M18 | HC215-47 | FLU 215 | |
| HCFLU215-48 | 3 | 275 | 225 | 164 | 41 | 24 | 62 | 21 | 95.8 ua | 37.3 ib | M18 | HC215-48 | FLU 215 | |
