Lub hauv ncoo thaiv pob bearing units muaj xws li ib tug insert bearing mounted nyob rau hauv ib tug vaj tse, uas yuav tsum tau bolted rau ib tug kev txhawb nqa nto.Qhov ntau yam no yog tsim los tswj cov load siab dua thiab nruab nrab ceev thiab tso cai rau dismantling ntawm ncej yam tsis tas yuav txav lub tsev mounting thiab.

•

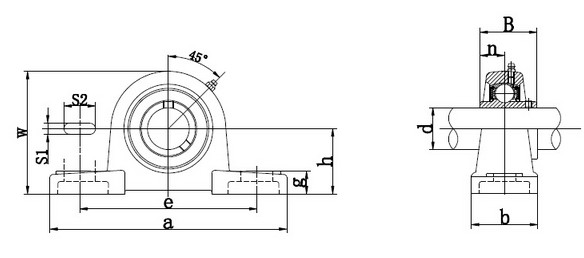

Pillow Block: UCP200, 300

Unit NO.	Ncej Dia d		Qhov Loj (mm)										Bolt Loj mm nti	Bearing No.	Tsev Tsis muaj.
	mm	nti	h	a	e	b	S1	S2	g	w	B	n
UCP201	12		30.2 ib	127	95	38	13	19	14	61	31	12.7 ib	M10	UA 201	P203
UCP201-8		1/2	30.2 ib	127	95	38	13	19	14	61	31	12.7 ib	3/8	UAS 201-8	P203
UAS 202	15		30.2 ib	127	95	38	13	19	14	61	31	12.7 ib	M10	TIAB SA 202	P203
UCP202-9		9/16	30.2 ib	127	95	38	13	19	14	61	31	12.7 ib	3/8	UAS 202-9	P203
UCP202-10		5/8	30.2 ib	127	95	38	13	19	14	61	31	12.7 ib	3/8	UAS 202-10	P203
UAS 203	17		30.2 ib	127	95	38	13	19	14	61	31	12.7 ib	M10	TIAB SA 203	P203
UCP203-11		11/16	30.2 ib	127	95	38	13	19	14	61	31	12.7 ib	3/8	UAS 203-11	P203
UAS 204	20		33.3	127	95	38	13	19	14	64	31	12.7 ib	M10	TIAB SA 204	P204
UCP204-12		3/4	33.3	127	95	38	13	19	14	64	31	12.7 ib	3/8	UAS 204-12	P204
UAS 205	25		36.5 ib	140	105	38	13	19	15	70	34	14.3	M10	TIAB SA 205	P205
UCP205-13		13/16	36.5 ib	140	105	38	13	19	15	70	34	14.3	ib 44628	UAS 205-13	P205
UCP205-14		7/8	36.5 ib	140	105	38	13	19	15	70	34	14.3	ib 44628	UAS 205-14	P205
UCP205-15		15/16	36.5 ib	140	105	38	13	19	15	70	34	14.3	ib 44628	UAS 205-15	P205
UCP205-16		1	36.5 ib	140	105	38	13	19	15	70	34	14.3	ib 44628	UAS 205-16	P205
UAS 206	30		42.9 ib	165	121	48	17	20	17	82	38.1 ib	15.9 ib	M14	TIAB SA 206	P206
UCP206-17		1-1/16	42.9 ib	165	121	48	17	20	17	82	38.1 ib	15.9 ib	1/2	UAS 206-17	P206
UCP206-18		1-1/8	42.9 ib	165	121	48	17	20	17	82	38.1 ib	15.9 ib	1/2	UAS 206-18	P206
UCP206-19		1-3/16	42.9 ib	165	121	48	17	20	17	82	38.1 ib	15.9 ib	1/2	UAS 206-19	P206
UCP206-20		1-1/4	42.9 ib	165	121	48	17	20	17	82	38.1 ib	15.9 ib	1/2	UAS 206-20	P206
UAS 207	35		47.6 ib	167	127	48	17	21	18	93	42.9 ib	17.5 Nws	M14	TIAB SA 207	P207
UCP207-20		1-1/4	47.6 ib	167	127	48	17	21	18	93	42.9 ib	17.5 Nws	1/2	UAS 207-20	P207
UCP207-21		1-5/16	47.6 ib	167	127	48	17	21	18	93	42.9 ib	17.5 Nws	1/2	UAS 207-21	P207
UCP207-22		1-3/8	47.6 ib	167	127	48	17	21	18	93	42.9 ib	17.5 Nws	1/2	UAS 207-22	P207
UCP207-23		1-7/16	47.6 ib	167	127	48	17	21	18	93	42.9 ib	17.5 Nws	1/2	UAS 207-23	P207
UAS 208	40		49.2 ib	184	137	54	17	21	18	98	49.2 ib	19	M14	TIAB SA 208	P208
UCP208-24		1-1/2	49.2 ib	184	137	54	17	21	18	98	49.2 ib	19	1/2	UAS 208-24	P208
UCP208-25		1-9/16	49.2 ib	184	137	54	17	21	18	98	49.2 ib	19	1/2	UAS 208-25	P208
UAS 209	45		54	190	146	54	17	21	20	106	49.2 ib	19	M14	TIAB SA 209	P209
UCP209-26		1-5/8	54	190	146	54	17	21	20	106	49.2 ib	19	1/2	UAS 209-26	P209
UCP209-27		1-11/16	54	190	146	54	17	21	20	106	49.2 ib	19	1/2	UAS 209-27	P209
UCP209-28		1-3/4	54	190	146	54	17	21	20	106	49.2 ib	19	1/2	UAS 209-28	P209
UCP 210	50		57.2 ib	206	159	60	20	25	21	113	51.6 ib	19	M16	UA 210	P210
UCP210-29		1-13/16	57.2 ib	206	159	60	20	25	21	113	51.6 ib	19	5/8	UAS 210-29	P210
UCP210-30		1-7/8	57.2 ib	206	159	60	20	25	21	113	51.6 ib	19	5/8	UAS 210-30	P210
UCP210-31		1-15/16	57.2 ib	206	159	60	20	25	21	113	51.6 ib	19	5/8	UAS 210-31	P210
UCP210-32		2	57.2 ib	206	159	60	20	25	21	113	51.6 ib	19	5/8	UAS 210-32	P210
UAS 211	55		63.5 ib	219	171	60	20	25	23	124	55.6 ib	22.2	M16	TIAB SA 211	P211
UCP211-32		2	63.5 ib	219	171	60	20	25	23	124	55.6 ib	22.2	5/8	UAS 211-32	P211
UCP211-33		2-1/16	63.5 ib	219	171	60	20	25	23	124	55.6 ib	22.2	5/8	UAS 211-33	P211
UCP211-34		2-1/8	63.5 ib	219	171	60	20	25	23	124	55.6 ib	22.2	5/8	UAS 211-34	P211
UCP211-35		2-3/16	63.5 ib	219	171	60	20	25	23	124	55.6 ib	22.2	5/8	UAS 211-35	P211
UAS 212	60		69.8 ua	241	184	70	20	25	25	138	65.1 ib	25.4 ib	M16	TIAB SA 212	P212
UCP212-36		2-1/4	69.8 ua	241	184	70	20	25	25	138	65.1 ib	25.4 ib	5/8	UAS 212-36	P212
UCP212-37		2-5/16	69.8 ua	241	184	70	20	25	25	138	65.1 ib	25.4 ib	5/8	UAS 212-37	P212
UCP212-38		2-3/8	69.8 ua	241	184	70	20	25	25	138	65.1 ib	25.4 ib	5/8	UAS 212-38	P212
UCP212-39		2-7/16	69.8 ua	241	184	70	20	25	25	138	65.1 ib	25.4 ib	5/8	UAS 212-39	P212
UAS 213	65		76.2 ib	265	203	70	25	30	27	151	65.1 ib	25.4 ib	M20	TIAB SA 213	P213
UAS 213-40		2-1/2	76.2 ib	265	203	70	25	30	27	151	65.1 ib		3/4	UAS 213-40	P213
UCP213-41		2-9/16	76.2 ib	265	203	70	25	30	27	151	65.1 ib		3/4	UAS 213-41	P213
UAS 214	70		79.4 ib	266	210	72	25	30	27	155	74.6 ib	30.2 ib	M20	TIAB SA 214	P214
UCP214-42		2-5/8	79.4 ib	266	210	72	25	30	27	155	74.6 ib	30.2 ib	3/4	UAS 214-42	P214
UCP214-43		2-11/16	79.4 ib	266	210	72	25	30	27	155	74.6 ib	30.2 ib	3/4	UAS 214-43	P214
UAS 214-44		2-3/4	79.4 ib	266	210	72	25	30	27	155	74.6 ib	30.2 ib	3/4	UAS 214-44	P214
UAS 215	75		82.6 ib	275	217	74	25	30	28	162	77.8 ib	33.3	M20	TIAB SA 215	P215
UCP215-45		2-13/16	82.6 ib	275	217	74	25	30	28	162	77.8 ib	33.3	3/4	UAS 215-45	P215
UCP215-46		2-7/8	82.6 ib	275	217	74	25	30	28	162	77.8 ib	33.3	3/4	UAS 215-46	P215
UAS 215-47		2-15/16	82.6 ib	275	217	74	25	30	28	162	77.8 ib	33.3	3/4	UAS 215-47	P215
UCP215-48		3	82.6 ib	275	217	74	25	30	28	162	77.8 ib	33.3	3/4	UAS 215-48	P215
UAS 216	80		88.9 ua	292 ib	232	78	25	30	30	174	82.6 ib	33.3	M20	TIAB SA 216	P216
UAS 216-49		3-1/16	88.9 ua	292 ib	232	78	25	30	30	174	82.6 ib	33.3	3/4	UAS 216-49	P216
UCP216-50		3-1/8	88.9 ua	292 ib	232	78	25	30	30	174	82.6 ib	33.3	3/4	UAS 216-50	P216
UCP216-51		3-3/16	88.9 ua	292 ib	232	78	25	30	30	174	82.6 ib	33.3	3/4	UAS 216-51	P216
UAS 217	85		95.2 ib	310	247	83	25	30	32	185	85.7 ua	34.1 ib	M20	TIAB SA 217	P217
UCP217-52		3-1/4	95.2 ib	310	247	83	25	30	32	185	85.7 ua	34.1 ib	3/4	UAS 217-52	P217
UCP217-53		3-5/16	95.2 ib	310	247	83	25	30	32	185	85.7 ua	34.1 ib	3/4	UAS 217-53	P217
UCP217-55		3-7/16	95.2 ib	310	247	83	25	30	32	185	85.7 ua	34.1 ib	3/4	UAS 217-55	P217
UAS 218	90		101.6 ib	327	262	88	27	33	33	198	96	39.7 ib	M22	TIAB SA 218	P218
UCP218-56		3-1/2	101.6 ib	327	262	88	27	33	33	198	96	39.7 ib	7/8	UAS 218-56	P218
UAS 305	25		45	175	132	45	17	20	15	85	38	15	M14	TIAB SA 305	P305
UCP305-14		7/8	45	175	132	45	17	20	15	85	38	15	1/2	UAS 305-14	P305
UCP305-15		15/16	45	175	132	45	17	20	15	85	38	15	1/2	UAS 305-15	P305
UCP305-16		1	45	175	132	45	17	20	15	85	38	15	1/2	UAS 305-16	P305
UAS 306	30		50	180	140	50	17	20	18	95	43	17	M14	TIAB SA 306	P306
UCP306-18		1-1/8	50	180	140	50	17	20	18	95	43	17	1/2	UAS 306-18	P306
UCP306-19		1-3/16	50	180	140	50	17	20	18	95	43	17	1/2	UAS 306-19	P306
UAS 307	35		56	210	160	56	17	25	20	106	48	19	M14	TIAB SA 307	p307 ua
UCP307-20		1-1/4	56	210	160	56	17	25	20	106	48	19	1/2	UAS 307-20	p307 ua
UCP307-21		1-5/16	56	210	160	56	17	25	20	106	48	19	1/2	UAS 307-21	p307 ua
UCP307-22		1-3/8	56	210	160	56	17	25	20	106	48	19	1/2	UAS 307-22	p307 ua
UCP307-23		1-7/16	56	210	160	56	17	25	20	106	48	19	1/2	UAS 307-23	p307 ua
UAS 308	40		60	220	170	60	17	27	22	116	52	19	M14	TIAB SA 308	P308
UCP308-24		1-1/2	60	220	170	60	17	27	22	116	52	19	1/2	UAS 308-24	P308
UCP308-25		1-9/16	60	220	170	60	17	27	22	116	52	19	1/2	UAS 308-25	P308
UAS 309	45		67	245	190	67	20	30	24	129	57	22	M16	TIAB SA 309	p309 ua
UCP309-26		1-5/8	67	245	190	67	20	30	24	129	57	22	5/8	UAS 309-26	p309 ua
UCP309-27		1-11/16	67	245	190	67	20	30	24	129	57	22	5/8	UAS 309-27	p309 ua
UCP309-28		1-3/4	67	245	190	67	20	30	24	129	57	22	5/8	UAS 309-28	p309 ua
UAS 310	50		75	275	212	75	20	35	27	143	61	22	M16	TIAB SA 310	P310
UCP310-30		1-7/8	75	275	212	75	20	35	27	143	61	22	5/8	UAS 310-30	P310
UCP310-31		1-15/16	75	275	212	75	20	35	27	143	61	22	5/8	UAS 310-31	P310
UAS 311	55		80	310	236	80	20	38	30	154	66	25	M16	TIAB SA 311	P311
UCP311-32		2	80	310	236	80	20	38	30	154	66	25	5/8	UAS 311-32	P311
UCP311-34		2-3/8	80	310	236	80	20	38	30	154	66	25	5/8	UAS 311-34	P311
UCP311-35		2-3/16	80	310	236	80	20	38	30	154	66	25	5/8	UAS 311-35	P311
UAS 312	60		85	330	250	85	25	38	32	165	71	26	M20	TIAB SA 312	P312
UCP312-36		2-1/4	85	330	250	85	25	38	32	165	71	26	3/4	UAS 312-36	P312
UCP312-38		2-3/8	85	330	250	85	25	38	32	165	71	26	3/4	UAS 312-38	P312
UCP312-39		2-7/16	85	330	250	85	25	38	32	165	71	26	3/4	UAS 312-39	P312
UAS 313	65		90	340	260	90	25	38	33	176	75	30	M20	TIAB SA 313	P313
UAS 313-40		2-1/2	90	340	260	90	25	38	33	176	75	30	3/4	UAS 313-40	P313
UAS 314	70		95	360	280	90	27	40	35	187	78	33	M22	TIAB SA 314	P314
UAS 314-44		2-3/4	95	360	280	90	27	40	35	187	78	33	7/8	UAS 314-44	P314
UAS 315	75		100	380	290	100	27	40	35	198	82	32	M22	TIAB SA 315	P315
UCP315-48		3	100	380	290	100	27	40	35	198	82	32	7/8	UAS 315-48	P315
UAS 316	80		106	400	300	110	27	40	40	210	86	34	M22	TIAB SA 315	P316
UCP316-50		3-1/8	106	400	300	110	27	40	40	210	86	34	7/8	UAS 316-50	P316
UAS 317	85		112	420	320	110	33	45	40	220	96	40	M27	TIAB SA 317	P317
UCP317-52		3-1/4	112	420	320	110	33	45	40	220	96	40	1	UAS 317-52	P317
UAS 318	90		118	430	330	110	33	45	45	235	96	40	M27	TIAB SA 318	P318
UCP318-56		3-1/2	118	430	330	110	33	45	45	235	96	40	1	UAS 318-56	P318
UAS 319	95		125	470 ib	360	120	36	50	45	250	103	41	M30	TIAB SA 319	P319
UCP319-60		3-3/4	125	470 ib	360	120	36	50	45	250	103	41	1-1/8	UAS 319-60	P319
UAS 320	100		140	490 ib	380	120	36	50	50	275	108	42	M30	TIAB SA 320	P320
UCP320-64		4	140	490 ib	380	120	36	50	50	275	108	42	1-1/8	UAS 320-64	P320
UAS 321		105	140	490 ib	380	120	36	50	50	280	112	44	M30	TIAB SA 321	P321
UAS 322		110	150	520	400	140	40	55	55	300	117	46	M33	TIAB SA 322	P322
UAS 324		120	160	570 ib	450	140	40	55	65	320	126	51	M33	TIAB SA 324	P324
UAS 326		130	180	600	480	140	40	55	75	355	135	54	M33	TIAB SA 326	P326
UAS 328		140	200	620	500	140	40	55	75	390	145	59	M33	TIAB SA 328	P328
