UCC Series (Lub Luag Haujlwm Ib Leeg) Cartridge Bearing Unit: Cam khwb cia hlau cartridge bearing chav nkag nrog qhov dav dav ntawm cov kabmob ntxig thiab suav nrog lub txiv mis roj los pab txhawb kev rov qab roj.Lub bearing insert muaj 2 grub screws tso cai nruj tiv thaiv lub ncej tom qab kev teeb tsa.Cartridge units tso cai rau nws tus kheej aligning bearing inserts yuav siv tau qhov twg ib tug ruaj bearing ib txwm siv.Lub insert yuav raug tshem tawm ntawm lub tsev nyob rau yav tom ntej hloov raws li yuav tsum tau.
-

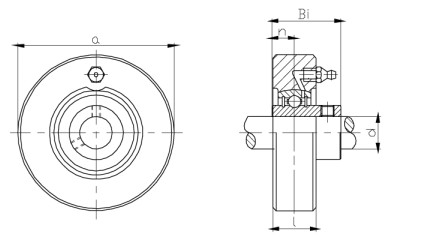

Cartridge-Units | Unit NO. | Ncej Dia d | Qhov Loj (mm) | Bearing No. | Tsev Tsis muaj. |
| mm | nti | a | i | B i | n |
| UCC201 | 12 | | 72 | 20 | 31 | 12.7 ib | UA 201 | C203 |
| UAS 202 | 15 | | 72 | 20 | 31 | 12.7 ib | TIAB SA 202 | C203 |
| UAS 203 | 17 | | 72 | 20 | 31 | 12.7 ib | TIAB SA 203 | C203 |
| UCC201-8 | | 1/2 | 72 | 20 | 31 | 12.7 ib | UAS 201-8 | C203 |
| UCC202-9 | | 9/16 | 72 | 20 | 31 | 12.7 ib | UAS 202-9 | C203 |
| UCC202-10 | | 5/8 | 72 | 20 | 31 | 12.7 ib | UAS 202-10 | C203 |
| UCC203-11 | | 11/16 | 72 | 20 | 31 | 12.7 ib | UAS 203-11 | C203 |
| UAS 204 | 20 | | 72 | 20 | 31 | 12.7 ib | TIAB SA 204 | C204 |
| UCC204-12 | | 3/4 | 72 | 20 | 31 | 12.7 ib | UAS 204-12 | C204 |
| UAS 205 | 25 | | 80 | 22 | 34 | 14.3 | TIAB SA 205 | C205 |
| UCC205-13 | | 13/16 | 80 | 22 | 34 | 14.3 | UAS 205-13 | C205 |
| UCC205-14 | | 7/8 | 80 | 22 | 34 | 14.3 | UAS 205-14 | C205 |
| UCC205-15 | | 15/16 | 80 | 22 | 34 | 14.3 | UAS 205-15 | C205 |
| UCC205-16 | | 1 | 80 | 22 | 34 | 14.3 | UAS 205-16 | C205 |
| UAS 206 | 30 | | 85 | 27 | 38.1 ib | 15.9 ib | TIAB SA 206 | C206 |
| UCC206-17 | | 1-1/16 | 85 | 27 | 38.1 ib | 15.9 ib | UAS 206-17 | C206 |
| UCC206-18 | | 1-1/8 | 85 | 27 | 38.1 ib | 15.9 ib | UAS 206-18 | C206 |
| UCC206-19 | | 1-3/16 | 85 | 27 | 38.1 ib | 15.9 ib | UAS 206-19 | C206 |
| UCC206-20 | | 1-1/4 | 85 | 27 | 38.1 ib | 15.9 ib | UAS 206-20 | C206 |
| UAS 207 | 35 | | 90 | 28 | 42.9 ib | 17.5 Nws | TIAB SA 207 | C207 |
| UCC207-20 | | 1-1/4 | 90 | 28 | 42.9 ib | 17.5 Nws | UAS 207-20 | C207 |
| UCC207-21 | | 1-5/16 | 90 | 28 | 42.9 ib | 17.5 Nws | UAS 207-21 | C207 |
| UCC207-22 | | 1-3/8 | 90 | 28 | 42.9 ib | 17.5 Nws | UAS 207-22 | C207 |
| UCC207-23 | | 1-7/16 | 90 | 28 | 42.9 ib | 17.5 Nws | UAS 207-23 | C207 |
| UAS 208 | 40 | | 100 | 30 | 49.2 ib | 19 | TIAB SA 208 | C208 |
| UCC208-24 | | 1-1/2 | 100 | 30 | 49.2 ib | 19 | UAS 208-24 | C208 |
| UCC208-25 | | 1-9/16 | 100 | 30 | 49.2 ib | 19 | UAS 208-25 | C208 |
| UAS 209 | 45 | | 1 10 | 31 | 49.2 ib | 19 | TIAB SA 209 | C209 |
| UCC209-26 | | 1-5/8 | 1 10 | 31 | 49.2 ib | 19 | UAS 209-26 | C209 |
| UCC209-27 | | 1-11/16 | 1 10 | 31 | 49.2 ib | 19 | UAS 209-27 | C209 |
| UCC209-28 | | 1-3/4 | 1 10 | 31 | 49.2 ib | 19 | UAS 209-28 | C209 |
| UCC 210 | 50 | | 120 | 33 | 51.6 ib | 19 | UA 210 | C210 |
| UCC210-29 | | 1-13/16 | 120 | 33 | 51.6 ib | 19 | UAS 210-29 | C210 |
| UCC210-30 | | 1-7/8 | 120 | 33 | 51.6 ib | 19 | UAS 210-30 | C210 |
| UCC210-31 | | 1-15/16 | 120 | 33 | 51.6 ib | 19 | UAS 210-31 | C210 |
| UCC210-32 | | 2 | 120 | 33 | 51.6 ib | 19 | UAS 210-32 | C210 |
| UAS 211 | 55 | | 125 | 35 | 55.6 ib | 22.2 | TIAB SA 211 | C211 |
| UCC211-32 | | 2 | 125 | 35 | 55.6 ib | 22.2 | UAS 211-32 | C211 |
| UCC211-33 | | 2-1/16 | 125 | 35 | 55.6 ib | 22.2 | UAS 211-33 | C211 |
| UCC211-34 | | 2-1/8 | 125 | 35 | 55.6 ib | 22.2 | UAS 211-34 | C211 |
| UCC211-35 | | 2-3/16 | 125 | 35 | 55.6 ib | 22.2 | UAS 211-35 | C211 |
| UAS 212 | 60 | | 130 | 38 | 65.1 ib | 25.4 ib | TIAB SA 212 | C212 |
| UCC212-36 | | 2-1/4 | 130 | 38 | 65.1 ib | 25.4 ib | UAS 212-36 | C212 |
| UCC212-37 | | 2-5/16 | 130 | 38 | 65.1 ib | 25.4 ib | UAS 212-37 | C212 |
| UCC212-38 | | 2-3/8 | 130 | 38 | 65.1 ib | 25.4 ib | UAS 212-38 | C212 |
| UCC212-39 | | 2-7/16 | 130 | 38 | 65.1 ib | 25.4 ib | UAS 212-39 | C212 |
| UAS 213 | 65 | | 140 | 40 | 65.1 ib | 25.4 ib | TIAB SA 213 | C213 |
| UAS 213-40 | | 2-1/2 | 140 | 40 | 65.1 ib | 25.4 ib | UAS 213-40 | C213 |
| UCC213-41 | | 2-9/16 | 140 | 40 | 65.1 ib | 25.4 ib | UAS 213-41 | C213 |
| UAS 05 | 25 | | 90 | 27 | 38.1 ib | 15.9 ib | UAX 05 | CX05 |
| UCCX05-14 | | 7/8 | 90 | 27 | 38.1 ib | 15.9 ib | UAS 05-14 | CX05 |
| UCCX05-15 | | 15/16 | 90 | 27 | 38.1 ib | 15.9 ib | UAS 05-15 | CX05 |
| UCCX05-16 | | 1 | 90 | 27 | 38.1 ib | 15.9 ib | UAS 05-16 | CX05 |
| UAS 06 | 30 | | 100 | 30 | 42.9 ib | 17.5 Nws | UAX 06 | CX06 |
| UCCX06-18 | | 1-1/8 | 100 | 30 | 42.9 ib | 17.5 Nws | UAS 06-18 | CX06 |
| UCCX06-19 | | 1-3/16 | 100 | 30 | 42.9 ib | 17.5 Nws | UAS 06-19 | CX06 |
| UCCX06-20 | | 1-1/4 | 100 | 30 | 42.9 ib | 17.5 Nws | UAS 06-20 | CX06 |
| UAS 07 | 35 | | 110 | 34 | 49.2 ib | 19 | UAX 07 | CX07 |
| UCCX07-20 | | 1-1/4 | 110 | 34 | 49.2 ib | 19 | UAS 07-20 | CX07 |
| UCCX07-22 | | 1-3/8 | 110 | 34 | 49.2 ib | 19 | UAS 07-22 | CX07 |
| UCCX07-23 | | 1-7/16 | 110 | 34 | 49.2 ib | 19 | UAS 07-23 | CX07 |
| UAS 08 | 40 | | 120 | 38 | 49.2 ib | 19 | UAS 08 | CX08 |
| UCCX08-24 | | 1-1/2 | 120 | 38 | 49.2 ib | 19 | UAS 08-24 | CX08 |
| UAS 09 | 45 | | 120 | 38 | 51.6 ib | 19 | UAX 09 | CX09 |
| UCCX09-26 | | 1-5/8 | 120 | 38 | 51.6 ib | 19 | UAS 09-26 | CX09 |
| UCCX09-27 | | 1-11/16 | 120 | 38 | 51.6 ib | 19 | UAS 09-27 | CX09 |
| UCCX09-28 | | 1-3/4 | 120 | 38 | 51.6 ib | 19 | UAS 09-28 | CX09 |
| UCCX 10 | 50 | | 130 | 40 | 55.6 ib | 22.2 | UAS 10 | CX10 |
| UCCX10-30 | | 1-7/8 | 130 | 40 | 55.6 ib | 22.2 | UAS 10-30 | CX10 |
| UAS 10-31 | | 1-15/16 | 130 | 40 | 55.6 ib | 22.2 | UAS 10-31 | CX10 |
| UCCX10-32 | | 2 | 130 | 40 | 55.6 ib | 22.2 | UAS 10-32 | CX10 |
| UCCX 11 | 55 | | 150 | 42 | 65.1 ib | 25.4 ib | UAS 11 | CX11 |
| UAS 11-34 | | 2-1/8 | 150 | 42 | 65.1 ib | 25.4 ib | UAS 11-34 | CX11 |
| UCCX11-35 | | 2-3/16 | 150 | 42 | 65.1 ib | 25.4 ib | UAS 11-35 | CX11 |
| UCCX 12 | 60 | | 160 | 44 | 65.1 ib | 25.4 ib | UAS 12 | CX 12 |
| UCCX12-38 | | 2-3/8 | 160 | 44 | 65.1 ib | 25.4 ib | UAS 12-38 | CX 12 |
| UCCX12-39 | | 2-7/16 | 160 | 44 | 65.1 ib | 25.4 ib | UAS 12-39 | CX 12 |
