Ob chav kab pob bearings yog tsim rau nruab nrab radial loads thiab me me axial loads nyob rau hauv ob qho tib si cov lus qhia.Lawv tsim thiab kev ua haujlwm zoo ib yam li ib khub ntawm ib leeg-kab pob bearings.Cov kabmob no yog siv rau hauv cov ntawv thov uas lub peev xwm thauj khoom ntawm cov kabmob ib leeg tsis txaus.Ob-kab cov kabmob muaj qhov sib txawv sab nraud thiab bore txoj kab uas hla raws li ib-kab bearings, tab sis dav dua thiab muaj peev xwm ua haujlwm ntau dua li ib leeg. -kab pob bearings ntawm 62 thiab 63 series.
-

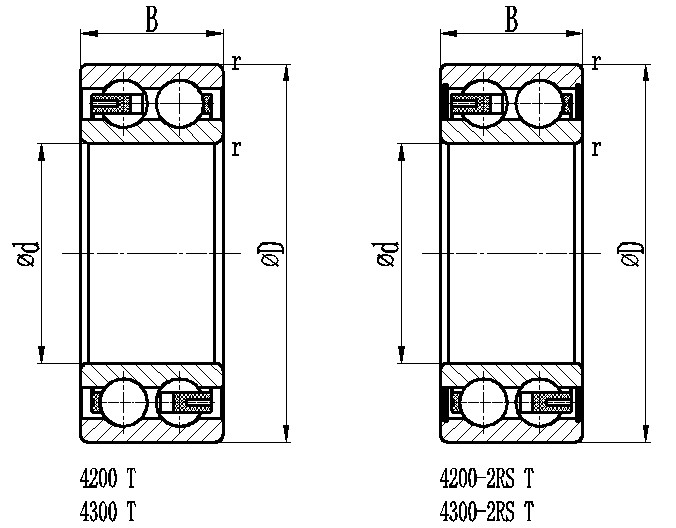

ob kab | Bearings naj npawb | Qhov loj me (mm) | Basic load ntsuam xyuas |
| d | D | B | r min. | Cr (KN) | Cor (KN) |
| 4 200t | 4200 2RS T | 10 | 30 | 14 | 0.6 | 8.69 ib | 4.94 ib |
| 4 201t | 4201 2RS T | 12 | 32 | 14 | 0.6 | 8.835 ib | 5.23 |
| 4 202t | 4202 RS T | 15 | 35 | 14 | 0.6 | 9.88 ib | 6.37 ib |
| 4 203t | 4203 2RS T | 17 | 40 | 16 | 0.6 | 13.87 Nws | 9.03 ib |
| 4 204t | 4204 2RS T | 20 | 47 | 18 | 1 | 17.1 | 12.07 Nws |
| 4 205t | 4205 2RS T | 25 | 52 | 18 | 1 | 18.34 Nws | 13.87 Nws |
| 4 206t | 4206 2RS T | 30 | 62 | 20 | 1 | 24.7 ib | 19.76 Nws |
| 4 207t | 4207 2 tzs | 35 | 72 | 23 | 1.1 | 30.4 ib | 24.7 ib |
| 4 208t | 4208 2 TSI | 40 | 80 | 23 | 1.1 | 32.3 | 28.5 Nws |
| 4 209t | 4209 2 tzs | 45 | 85 | 23 | 1.1 | 34.2 ib | 31.83 Nws |
| 4 210t | 4210 2RS T | 50 | 90 | 23 | 1.1 | 35.63 ib | 34.68 ib |
| 4 211t | 4211 2RS T | 55 | 100 | 25 | 1.5 | 34.68 ib | 40.85 ib |
| 4 212t | 4212 RS T | 60 | 110 | 28 | 1.5 | 54.15 Nws | 55.58 ib |
| 4 213t | 4213 2RS T | 65 | 120 | 31 | 1.5 | 63.65 ib | 63.65 ib |
| 4 214t | 4214 2RS T | 70 | 125 | 31 | 1.5 | 66.03 ib | 69.83 ib |
| 4 215t | 4215 2RS T | 75 | 130 | 31 | 1.5 | 69.83 ib | 76 |
| 4 216t | 4216 2RS T | 80 | 140 | 33 | 2 | 76 | 85.5 ua |
| 4217 t ua | 4217 2 TSI | 85 | 150 | 36 | 2 | 88.35 ib | 100.7 Nws |
| 4 218t | 4218 2 TSI | 90 | 160 | 40 | 2 | 106.4 ib | 115.9 ib |
| 4 300t | 4300 2RS T | 10 | 35 | 17 | 0.6 | 14.3 | 8.9 ib |
| 4 301t | 4301 2 TSI | 12 | 37 | 17 | 1.0 | 13 | 7.8 ib |
| 4 302t | 4302 RS T | 15 | 42 | 17 | 1 | 13.87 Nws | 8.69 ib |
| 4 303t | 4303 2 tzs | 17 | 47 | 19 | 1 | 18.62 Nws | 12.54 Nws |
| 4 304t | 4304 2 tzs | 20 | 52 | 21 | 1.1 | 22.04 Nws | 15.2 |
| 4 305t | 4305 2 tzs | 25 | 62 | 24 | 1.1 | 29.93 Nws | 21.28 Nws |
| 4 306t | 4306 2 tzs | 30 | 72 | 27 | 1.1 | 38 | 28.98 Nws |
| 4 307t | 4307 2 tzs | 35 | 80 | 31 | 1.5 | 48.45 Nws | 36.1 ib |
| 4 308t | 4308 2 TSI | 40 | 90 | 33 | 1.5 | 59.85 ib | 45.6 ib |
| 4 309t | 4309 2 tzs | 45 | 100 | 36 | 1.5 | 68.4 ib | 57 |
| 4 310t | 4310 2 AWV | 50 | 110 | 40 | 2 | 85.5 ua | 71.25 Nws |
| 4 311t | 4311 2 AWV | 55 | 120 | 43 | 2 | 98.8 ua | 85.5 ua |
| 4 312t | 4312 RS T | 60 | 130 | 46 | 2.1 | 114 | 100.7 Nws |
| 4 313t | 4313 2 AWV | 65 | 140 | 48 | 2.3 | 123 | 108 |
| 4 314t | 4314 2 tzs | 70 | 150 | 51 | 2.3 | 135 | 108 |
| 4 315t | 4315 2 tzs | 75 | 160 | 55 | 2.5 | 142 | 126 |
| 4 316t | 4316 2 tzs | 80 | 170 | 58 | 3 | 158 | 132 |
