pressed steel oval vaj tse, nias steel hauv ncoo vaj tse, nias steel puag ncig vaj tse thiab nias steel daim duab peb sab vaj tse.Ua los ntawm cov hlau galvanized, txhua qhov ntawm cov xovxwm steel vaj tsev yog ib qho yooj yim siv thiab kev daws teeb meem zoo rau vaj tsev.Lawv yog cov zoo tagnrho rau siv nyob rau hauv lub teeb rau nruab nrab daim ntaub ntawv thiab yuav bolted rau daim hlau los yog ntoo ncej raws li xav tau.
-

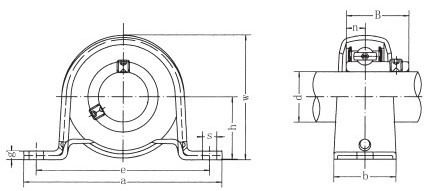

Pressed Housing Units: SBPP | Unit NO. | Ncej Dia d | Dimensions mm nyob rau hauv. | Bolt Loj mm nti | | Tsev Tsis muaj. |
| mm | nti | h | a | e | b | s | g | w | B | n | Bearing No. |
| PAB 201 | 12 | | 22.2 | 86 | 68 | 25 | 9.5 ib | 3.2 | 43.8 ib | 22 | 6 | M8 | SIB 201 | PAB 203 |
| PAB 201-8 | | 1/2 | 22.2 | 86 | 68 | 25 | 9.5 ib | 3.2 | 43.8 ib | 22 | 6 | 5/16 | SIB 201-8 | PAB 203 |
| PAB 202 | 15 | | 22.2 | 86 | 68 | 25 | 9.5 ib | 3.2 | 43.8 ib | 22 | 6 | M8 | SIB 202 | PAB 203 |
| SIB 202-9 | | 9/16 | 22.2 | 86 | 68 | 25 | 9.5 ib | 3.2 | 43.8 ib | 22 | 6 | 5/16 | SIB 202-9 | PAB 203 |
| PAB 202-10 | | 5/8 | 22.2 | 86 | 68 | 25 | 9.5 ib | 3.2 | 43.8 ib | 22 | 6 | 5/16 | SIB 202-10 | PAB 203 |
| TIAB SA 203 | 17 | | 22.2 | 86 | 68 | 25 | 9.5 ib | 3.2 | 43.8 ib | 22 | 6 | M8 | SIB 203 | PAB 203 |
| PAB 203-11 | | 11/16 | 22.2 | 86 | 68 | 25 | 9.5 ib | 3.2 | 43.8 ib | 22 | 6 | 5/16 | SIB 203-11 | PAB 203 |
| TIAB SA 204 | 20 | | 25.4 ib | 98 | 76 | 32 | 9.5 ib | 3.2 | 50.5 ib | 25 | 7 | M8 | SIB 204 | PIB 204 |
| PAB 204-12 | | 3/4 | 25.4 ib | 98 | 76 | 32 | 9.5 ib | 3.2 | 50.5 ib | 25 | 7 | 5/16 | SIB 204-12 | PIB 204 |
| TIAB SA 205 | 25 | | 28.6 ib | 108 | 86 | 32 | 11.5 | 4 | 56.6 ib | 27 | 7.5 | M10 | SIB 205 | PIB 205 |
| PAB 205-13 | | 13/16 | 28.6 ib | 108 | 86 | 32 | 11.5 | 4 | 56.6 ib | 27 | 7.5 | 3/8 | SIB 205-13 | PIB 205 |
| PAB 205-14 | | 7/8 | 28.6 ib | 108 | 86 | 32 | 11.5 | 4 | 56.6 ib | 27 | 7.5 | 3/8 | SIB 205-14 | PIB 205 |
| PAB 205-15 | | 15/16 | 28.6 ib | 108 | 86 | 32 | 11.5 | 4 | 56.6 ib | 27 | 7.5 | 3/8 | SIB 205-15 | PIB 205 |
| PAB 205-16 | | 1 | 28.6 ib | 108 | 86 | 32 | 11.5 | 4 | 56.6 ib | 27 | 7.5 | 3/8 | SIB 205-16 | PIB 205 |
| TIAB SA 206 | 30 | | 33.3 | 117 | 95 | 38 | 11.5 | 4 | 66.3 ib | 30 | 8 | M10 | SIB 206 | PIB 206 |
| PAB 206-17 | | 1-1/16 | 33.3 | 117 | 95 | 38 | 11.5 | 4 | 66.3 ib | 30 | 8 | 3/8 | SIB 206-17 | PIB 206 |
| PAB 206-18 | | 1-1/8 | 33.3 | 117 | 95 | 38 | 11.5 | 4 | 66.3 ib | 30 | 8 | 3/8 | SIB 206-18 | PIB 206 |
| SIB 206-19 | | 1-3/16 | 33.3 | 117 | 95 | 38 | 11.5 | 4 | 66.3 ib | 30 | 8 | 3/8 | SIB 206-19 | PIB 206 |
| PAB 206-20 | | 1-1/4 | 33.3 | 117 | 95 | 38 | 11.5 | 4 | 66.3 ib | 30 | 8 | 3/8 | SIB 206-20 | PIB 206 |
| TIAB SA 207 | 35 | | 39.7 ib | 129 | 106 | 42 | 11.5 | 4.6 | 78 | 32 | 8.5 | M10 | SIB 207 | PAB 207 |
| PAB 207-20 | | 1-1/4 | 39.7 ib | 129 | 106 | 42 | 11.5 | 4.6 | 78 | 32 | 8.5 | 3/8 | SIB 207-20 | PAB 207 |
| PAB 207-21 | | 1-5/16 | 39.7 ib | 129 | 106 | 42 | 11.5 | 4.6 | 78 | 32 | 8.5 | 3/8 | SIB 207-21 | PAB 207 |
| PAB 207-22 | | 1-3/8 | 39.7 ib | 129 | 106 | 42 | 11.5 | 4.6 | 78 | 32 | 8.5 | 3/8 | SIB 207-22 | PAB 207 |
| PAB 207-23 | | 1-7/16 | 39.7 ib | 129 | 106 | 42 | 11.5 | 4.6 | 78 | 32 | 8.5 | 3/8 | SIB 207-23 | PAB 207 |
| TIAB SA 208 | 40 | | 43.7 ib | 148 | 120 | 43 | 13 | 5 | 85 | 34 | 9 | M12 | SIB 208 | PAB 208 |
| PAB 208-24 | | 1-1/2 | 43.7 ib | 148 | 120 | 43 | 13 | 5 | 85 | 34 | 9 | 7/16 | SIB 208-24 | PAB 208 |
| PAB 208-25 | | 1-9/16 | 43.7 ib | 148 | 120 | 43 | 13 | 5 | 85 | 34 | 9 | 7/16 | SIB 208-25 | PAB 208 |
| TIAB SA 209 | 45 | | 46.8 ib | 156 | 128 | 45 | 13 | 6 | 92.3 ib | 41.2 ib | 10.2 | M12 | SIB 209 | PAB 209 |
| SIB 209-26 | | 1-5/8 | 46.8 ib | 156 | 128 | 45 | 13 | 6 | 92.3 ib | 41.2 ib | 10.2 | 7/16 | SIB 209-26 | PAB 209 |
| PAB 209-27 | | 1-11/16 | 46.8 ib | 156 | 128 | 45 | 13 | 6 | 92.3 ib | 41.2 ib | 10.2 | 7/16 | SIB 209-27 | PAB 209 |
| PAB 209-28 | | 1-3/4 | 46.8 ib | 156 | 128 | 45 | 13 | 6 | 92.3 ib | 41.2 ib | 10.2 | 7/16 | SIB 209-28 | PAB 209 |
