Ob chav kev taw qhia thrust pob bearings muaj xws li lub tshuab ntxhua khaub ncaws, ob lub tsev ntxhua khaub ncaws thiab ob lub tawb-pob sib dhos.Lub tshuab ntxhua khaub ncaws no yog sandwiched ntawm ob lub tawb, tso cai rau cov kabmob coj axial loads hauv ob qho tib si.Lub tawb muaj cov khoom thaum lub grooved aligning seat washer coj lawv.

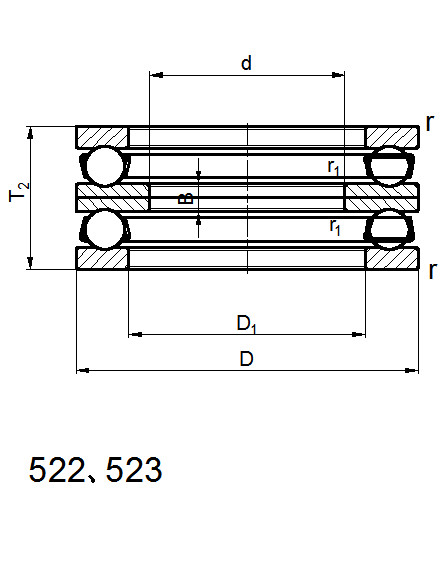

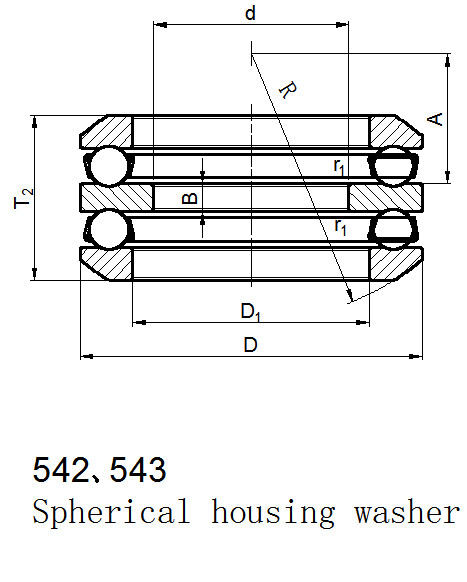

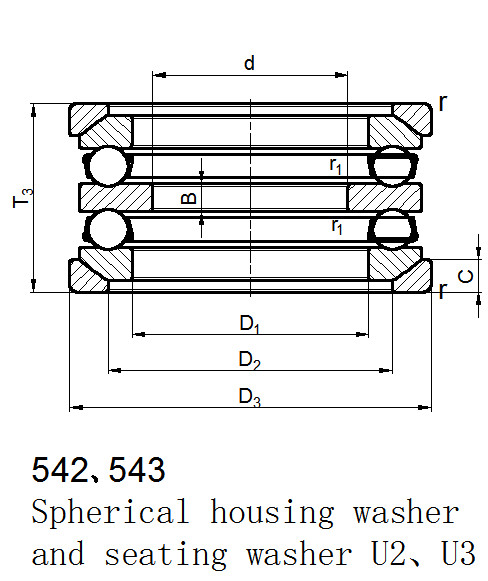

Ob txoj kev Thrust Pob Bearings | Lub npe | Qhov Loj (mm) | | Basic load ntsuam xyuas |
| Code bearing | Lub rooj zaum ntxhua khaub ncaws | d | D | T2 | D1 | B | r min. | r1 nqi. | R | A | D2 | D3 | C | T3 | ua dyn.Ca KN | stat.Koj KN |
| 52202 ib | - | 10 | 32 | 22 | 17 | 5 | 0.6 | 0.3 | - | - | - | - | - | - | 16.6 | 25 |
| 52204 ib | - | 15 | 40 | 26 | 22 | 6 | 0.6 | 0.3 | - | - | - | - | - | - | 22.4 ib | 37.5 ib |
| 52205 ib | - | 20 | 47 | 28 | 27 | 7 | 0.6 | 0.3 | - | - | - | - | - | - | 28 | 50 |
| 54205 ib | - | 20 | 47 | 31.4 ib | 27 | 7 | 0.6 | 0.3 | 40 | 16.5 ib | - | - | - | - | 28 | 50 |
| 54205 ib | U205 | 20 | 47 | 31.4 ib | 27 | 7 | 0.6 | 0.3 | 40 | 16.5 ib | 36 | 50 | 5.5 | 36 | 28 | 50 |
| 52305 ib | - | 20 | 52 | 34 | 27 | 8 | 1 | 0.3 | - | - | - | - | - | - | 34.5 ib | 55 |
| 54305 ib | - | 20 | 52 | 37.6 ib | 27 | 8 | 1 | 0.3 | 45 | 18 | - | - | - | - | 34.5 ib | 55 |
| 54305 ib | ua 305 | 20 | 52 | 37.6 ib | 27 | 8 | 1 | 0.3 | 45 | 18 | 38 | 55 | 6 | 42 | 34.5 ib | 55 |
| 52206 ib | - | 25 | 52 | 29 | 32 | 7 | 0.6 | 0.3 | - | - | - | - | - | - | 25 | 46.5 ib |
| 54206 ib | - | 25 | 52 | 32.6 ib | 32 | 7 | 0.6 | 0.3 | 45 | 20 | - | - | - | - | 25 | 46.5 ib |
| 54206 ib | U206 | 25 | 52 | 32.6 ib | 32 | 7 | 0.6 | 0.3 | 45 | 20 | 42 | 55 | 5.5 | 37 | 25 | 46.5 ib |
| 52306 ib | - | 25 | 60 | 38 | 32 | 9 | 1 | 0.3 | - | - | - | - | - | - | 38 | 65.5 ib |
| 54306 ib | - | 25 | 60 | 41.2 ib | 32 | 9 | 1 | 0.3 | 50 | 19.5 Nws | - | - | - | - | 38 | 65.5 ib |
| 54306 ib | ua 306 | 25 | 60 | 41.2 ib | 32 | 9 | 1 | 0.3 | 50 | 19.5 Nws | 45 | 62 | 7 | 46 | 38 | 65.5 ib |
| 52207 ib | - | 30 | 62 | 34 | 37 | 8 | 1 | 0.3 | - | - | - | - | - | - | 35.5 ib | 67 |
| 54207 ib | - | 30 | 62 | 37.8 ib | 37 | 8 | 1 | 0.3 | 50 | 21 | - | - | - | - | 35.5 ib | 67 |
| 54207 ib | ua 207 | 30 | 62 | 37.8 ib | 37 | 8 | 1 | 0.3 | 50 | 21 | 48 | 65 | 7 | 42 | 35.5 ib | 67 |
| 52307 ib | - | 30 | 68 | 44 | 37 | 10 | 1 | 0.3 | - | - | - | - | - | - | 50 | 88 |
| 54307 ib | - | 30 | 68 | 47.2 ib | 37 | 10 | 1 | 0.3 | 56 | 21 | - | - | - | - | 50 | 88 |
| 54307 ib | ua 307 | 30 | 68 | 47.2 ib | 37 | 10 | 1 | 0.3 | 56 | 21 | 52 | 72 | 7.5 | 52 | 50 | 88 |
| 52208 ib | - | 30 | 68 | 36 | 42 | 9 | 1 | 0.6 | - | - | - | - | - | - | 46.5 ib | 98 |
| 54208 ib | - | 30 | 68 | 38.6 ib | 42 | 9 | 1 | 0.6 | 56 | 25 | - | - | - | - | 46.5 ib | 98 |
| 54208 ib | U208 | 30 | 68 | 38.6 ib | 42 | 9 | 1 | 0.6 | 56 | 25 | 55 | 72 | 7 | 44 | 46.5 ib | 98 |
| 52308 ib | - | 30 | 78 | 49 | 42 | 12 | 1 | 0.6 | - | - | - | - | - | - | 61 | 112 |
| 52209 ib | - | 35 | 73 | 37 | 47 | 9 | 1 | 0.6 | - | - | - | - | - | - | 39 | 80 |
| 54209 ib | - | 35 | 73 | 39.6 ib | 47 | 9 | 1 | 0.6 | 56 | 23 | - | - | - | - | 39 | 80 |
| 54209 ib | ua 209 | 35 | 73 | 39.6 ib | 47 | 9 | 1 | 0.6 | 56 | 23 | 60 | 78 | 7.5 | 45 | 39 | 80 |
| 52309 ib | - | 35 | 85 | 52 | 47 | 12 | 1 | 0.6 | - | - | - | - | - | - | 75 | 140 |
| 54309 ib | - | 35 | 85 | 56.2 ib | 47 | 12 | 1 | 0.6 | 64 | 21 | - | - | - | - | 75 | 140 |
| 54309 ib | ua 309 | 35 | 85 | 56.2 ib | 47 | 12 | 1 | 0.6 | 64 | 21 | 65 | 90 | 10 | 62 | 75 | 140 |
| 52210 ib | - | 40 | 78 | 39 | 52 | 9 | 1 | 0.6 | - | - | - | - | - | - | 50 | 106 |
| 54210 ib | - | 40 | 78 | 42 | 52 | 9 | 1 | 0.6 | 64 | 30.5 ib | - | - | - | - | 50 | 106 |
| 54210 ib | U210 | 40 | 78 | 42 | 52 | 9 | 1 | 0.6 | 64 | 30.5 ib | 62 | 82 | 7.5 | 47 | 50 | 106 |
| 5 2310 | - | 40 | 95 | 58 | 52 | 14 | 1.1 | 0.6 | - | - | - | - | - | - | 86.5 ib | 170 |
| 5 4310 | - | 40 | 95 | 64.6 ib | 52 | 14 | 1.1 | 0.6 | 72 | 23 | - | - | - | - | 86.5 ib | 170 |
| 5 4310 | ua 310 | 40 | 95 | 64.6 ib | 52 | 14 | 1.1 | 0.6 | 72 | 23 | 72 | 100 | 11 | 70 | 86.5 ib | 170 |
| 52211 ib | - | 45 | 90 | 45 | 57 | 10 | 1 | 0.6 | - | - | - | - | - | - | 61 | 134 |
| 54211 ib | - | 45 | 90 | 49.6 ib | 57 | 10 | 1 | 0.6 | 72 | 32.5 ib | - | - | - | - | 61 | 134 |
| 54211 ib | U211 | 45 | 90 | 49.6 ib | 57 | 10 | 1 | 0.6 | 72 | 32.5 ib | 72 | 95 | 9 | 55 | 61 | 134 |
| 52311 ib | - | 45 | 105 | 64 | 57 | 15 | 1.1 | 0.6 | - | - | - | - | - | - | 102 | 208 |
| 54311 ib | - | 45 | 105 | 72.6 ib | 57 | 15 | 1.1 | 0.6 | 80 | 25.5 ib | - | - | - | - | 102 | 208 |
| 54311 ib | ua 311 | 45 | 105 | 72.6 ib | 57 | 15 | 1.1 | 0.6 | 80 | 25.5 ib | 80 | 110 | 11.5 | 78 | 102 | 208 |
| 52212 ib | - | 50 | 95 | 46 | 62 | 10 | 1 | 0.6 | - | - | - | - | - | - | 62 | 140 |
| 54212 ib | - | 50 | 95 | 50 | 62 | 10 | 1 | 0.6 | 72 | 30.5 ib | - | - | - | - | 62 | 140 |
| 54212 ib | U212 | 50 | 95 | 50 | 62 | 10 | 1 | 0.6 | 72 | 30.5 ib | 78 | 100 | 9 | 56 | 62 | 140 |
| 52312 ib | - | 50 | 110 | 64 | 62 | 15 | 1.1 | 0.6 | - | - | - | - | - | - | 100 | 208 |
| 54312 ib | - | 50 | 110 | 70.6 ib | 62 | 15 | 1.1 | 0.6 | 90 | 36.5 ib | - | - | - | - | 100 | 208 |
| 54312 ib | ua 312 | 50 | 110 | 70.6 ib | 62 | 15 | 1.1 | 0.6 | 90 | 36.5 ib | 85 | 115 | 11.5 | 78 | 100 | 208 |
| 52213 ib | - | 55 | 100 | 47 | 67 | 10 | 1 | 0.6 | - | - | - | - | - | - | 64 | 150 |
| 52313 ib | - | 55 | 115 | 65 | 67 | 15 | 1.1 | 0.6 | - | - | - | - | - | - | 106 | 220 |
| 52214 ib | - | 55 | 105 | 47 | 72 | 10 | 1 | 1 | - | - | - | - | - | - | 65.5 ib | 160 |
| 52314 ib | - | 55 | 125 | 72 | 72 | 16 | 1.1 | 1 | - | - | - | - | - | - | 134 | 290 |
| 54314 ib | - | 55 | 125 | 80.4 ua | 72 | 16 | 1.1 | 1 | 100 | 39 | - | - | - | - | 134 | 290 |
| 54314 ib | ua 314 | 55 | 125 | 80.4 ua | 72 | 16 | 1.1 | 1 | 100 | 39 | 98 | 130 | 13 | 88 | 134 | 290 |
| 52215 ib | - | 60 | 110 | 47 | 77 | 10 | 1 | 1 | - | - | - | - | - | - | 67 | 170 |
| 54215 ib | - | 60 | 110 | 49.6 ib | 77 | 10 | 1 | 1 | 90 | 47.5 ib | - | - | - | - | 67 | 170 |
| 54215 ib | U215 | 60 | 110 | 49.6 ib | 77 | 10 | 1 | 1 | 90 | 47.5 ib | 92 | 115 | 9.5 ib | 57 | 67 | 170 |
| 52315 ib | - | 60 | 135 | 79 | 77 | 18 | 1.5 | 1 | - | - | - | - | - | - | 163 | 360 |
| 54315 ib | - | 60 | 135 | 87.2 ib | 77 | 18 | 1.5 | 1 | 100 | 32.5 ib | - | - | - | - | 163 | 360 |
| 54315 ib | ua 315 | 60 | 135 | 87.2 ib | 77 | 18 | 1.5 | 1 | 100 | 32.5 ib | 105 | 140 | 15 | 95 | 163 | 360 |
| 52216 ib | - | 65 | 115 | 48 | 82 | 10 | 1 | 1 | - | - | - | - | - | - | 75 | 190 |
| 54216 ib | - | 65 | 115 | 51 | 82 | 10 | 1 | 1 | 90 | 45 | - | - | - | - | 75 | 190 |
| 54216 ib | U216 | 65 | 115 | 51 | 82 | 10 | 1 | 1 | 90 | 45 | 98 | 120 | 10 | 58 | 75 | 190 |
| 52316 ib | - | 65 | 140 | 79 | 82 | 18 | 1.5 | 1 | - | - | - | - | - | - | 160 | 360 |
| 54316 ib | - | 65 | 140 | 86.2 ib | 82 | 18 | 1.5 | 1 | 112 | 45.5 ib | - | - | - | - | 160 | 360 |
| 54316 ib | ua 316 | 65 | 140 | 86.2 ib | 82 | 18 | 1.5 | 1 | 112 | 45.5 ib | 110 | 145 | 15 | 95 | 160 | 360 |
| 52217 ib | - | 70 | 125 | 55 | 88 | 12 | 1 | 1 | - | - | - | - | - | - | 88.2 ib | 225 |
| 54217 ib | - | 70 | 125 | 59.2 ib | 88 | 12 | 1 | 1 | 100 | 49.5 ib | - | - | - | - | 88.2 ib | 225 |
| 54217 ib | ua 217 | 70 | 125 | 59.2 ib | 88 | 12 | 1 | 1 | 100 | 49.5 ib | 105 | 130 | 11 | 67 | 88.2 ib | 225 |
| 52317 ib | - | 70 | 150 | 87 | 88 | 19 | 1.5 | 1 | - | - | - | - | - | - | 167.4 ib | 373.5 ib |
| 54317 ib | - | 70 | 150 | 95.2 ib | 88 | 19 | 1.5 | 1 | 112 | 39 | - | - | - | - | 167.4 ib | 373.5 ib |
| 54317 ib | ua 317 | 70 | 150 | 95.2 ib | 88 | 19 | 1.5 | 1 | 112 | 39 | 115 | 155 | 17.5 Nws | 105 | 167.4 ib | 373.5 ib |
| 52218 ib | - | 75 | 135 | 62 | 93 | 14 | 1.1 | 1 | - | - | - | - | - | - | 106.2 ib | 270 |
| 54218 ib | - | 75 | 135 | 69 | 93 | 14 | 1.1 | 1 | 100 | 42 | - | - | - | - | 106.2 ib | 270 |
| 54218 ib | U218 | 75 | 135 | 69 | 93 | 14 | 1.1 | 1 | 100 | 42 | 110 | 140 | 13.5 Nws | 76 | 106.2 ib | 270 |
| 52318 ib | - | 75 | 155 | 88 | 93 | 19 | 1.5 | 1 | - | - | - | - | - | - | 173.7 ib | ib 409.5 |
| 54318 ib | - | 75 | 155 | 97.2 ib | 93 | 19 | 1.5 | 1 | 112 | 36.5 ib | - | - | - | - | 173.7 ib | ib 409.5 |
| 54318 ib | ua 318 | 75 | 155 | 97.2 ib | 93 | 19 | 1.5 | 1 | 112 | 36.5 ib | 120 | 160 | 18 | 106 | 173.7 ib | ib 409.5 |
| 52220 ib | - | 85 | 150 | 67 | 103 | 15 | 1.1 | 1 | - | - | - | - | - | - | 109.8 ib | 288 |
| 54220 ua | - | 85 | 150 | 72.8 ib | 103 | 15 | 1.1 | 1 | 112 | 49 | - | - | - | - | 109.8 ib | 288 |
| 54220 ua | U220 | 85 | 150 | 72.8 ib | 103 | 15 | 1.1 | 1 | 112 | 49 | 125 | 155 | 14 | 81 | 109.8 ib | 288 |
| 52320 ua | - | 85 | 170 | 97 | 103 | 21 | 1.5 | 1 | - | - | - | - | - | - | 216 | 526.5 ib |
| 54320 ua | - | 85 | 170 | 105.4 ib | 103 | 21 | 1.5 | 1 | 125 | 42 | - | - | - | - | 216 | 526.5 ib |
| 54320 ua | ua 320 | 85 | 170 | 105.4 ib | 103 | 21 | 1.5 | 1 | 125 | 42 | 135 | 175 | 18 | 115 | 216 | 526.5 ib |
| 52222 ib | - | 95 | 160 | 67 | 113 | 15 | 1.1 | 1 | - | - | - | - | - | - | 120.6 ib | 328.5 ib |
| 52322 ib | - | 95 | 190 | 110 | 113 | 24 | 2 | 1 | - | - | - | - | - | - | 252 | 675 ib |
| 54322 ib | - | 95 | 190 | 118.4 ib | 113 | 24 | 2 | 1 | 140 | 47 | - | - | - | - | 252 | 675 ib |
| 54322 ib | ua 322 | 95 | 190 | 118.4 ib | 113 | 24 | 2 | 1 | 140 | 47 | 150 | 195 | 20.5 ib | 128 | 252 | 675 ib |
| 52224 ib | - | 100 | 170 | 68 | 123 | 15 | 1.1 | 1.1 | - | - | - | - | - | - | 120.6 ib | 351 |
| 52324 ib | - | 100 | 210 | 123 | 123 | 27 | 2.1 | 1.1 | - | - | - | - | - | - | 292.5 ib | ib 823.5 |
| 52226 ib | - | 110 | 190 | 80 | 133 | 18 | 1.5 | 1.1 | - | - | - | - | - | - | 164.7 ib | 486 ib |
| 52326 ib | - | 110 | 225 | 130 | 134 | 30 | 2.1 | 1.1 | - | - | - | - | - | - | 324 | 954 ib |
| 52228 ib | - | 120 | 200 | 81 | 143 | 18 | 1.5 | 1.1 | - | - | - | - | - | - | 171 | 513 |
| 52328 ib | - | 120 | 240 | 140 | 144 | 31 | 2.1 | 1.1 | - | - | - | - | - | - | 364.5 ib | 1125 |
| 52230 ib | - | 130 | 215 | 89 | 153 | 20 | 1.5 | 1.1 | - | - | - | - | - | - | 212.4 ib | 661.5 ib |
| 52330 ua | - | 130 | 250 | 140 | 154 | 31 | 2.1 | 1.1 | - | - | - | - | - | - | 373.5 ib | 1206 |
| 52232 ib | - | 140 | 225 | 90 | 163 | 20 | 1.5 | 1.1 | - | - | - | - | - | - | 216 | 688.5 ib |
| 52234 ib | - | 150 | 240 | 97 | 173 | 21 | 1.5 | 1.1 | - | - | - | - | - | - | 256.5 ib | 837 ib |
