Precision lock txiv ntseej yog bearing accessories rau ntsia hlau tsav.Lawv yog siv los ua kom tiav ib qho kev txiav txim siab axial preload hauv axial angular contact pob bearings rau cov ntsia hlau tsav thiab axial / radial roller bearings rau cov ntsia hlau tsav.Precision lock txiv ntseej kuj tseem siv tau rau hauv lwm daim ntawv thov uas siab axial rog yuav tsum tau txais kev txhawb nqa thiab siab axial khiav tawm qhov raug thiab rigidity yuav tsum tau.
-

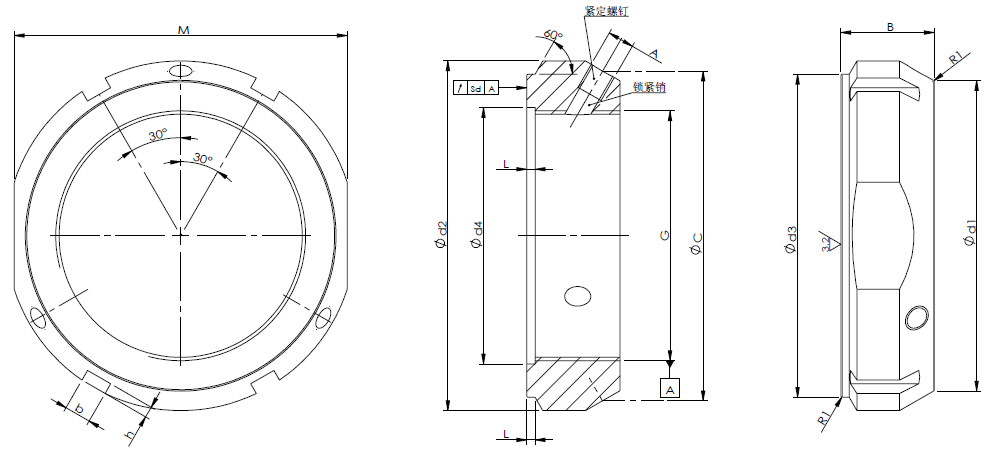

Precision xauv ceev: KMT series | Yam khoom | G | d1 | d2 | d3 ± 0.30 | d4 ± 0.30 | B | b | h | M (0/-0.50) | A | L | C | R1 | Sd |
| KWM 0 | M10 X 0.75 | 21 | 28 | 23 | 11 | 14 | 4 | 2 | 24 | M5 | 2 | 24.5 ib | 0.5 | 0.04 ib |
| KMT 1 | M12 X 1 | 23 | 30 | 25 | 13 | 14 | 4 | 2 | 27 | M5 | 2 | 26.5 ib | 0.5 | 0.04 ib |
| KMT 2 | M15X1 | 26 | 33 | 28 | 16 | 16 | 4 | 2 | 30 | M5 | 2 | 29.5 ib | 0.5 | 0.04 ib |
| KWM 3 | M17X1 | 29 | 37 | 33 | 18 | 18 | 5 | 2 | 34 | M6 | 2 | 33 | 0.5 | 0.04 ib |
| KWM 4 | M20X1 | 32 | 40 | 35 | 21 | 18 | 5 | 2 | 36 | M6 | 2 | 36 | 0.5 | 0.04 ib |
| KWM 5 | M25X1.5 | 36 | 44 | 39 | 26 | 20 | 5 | 2 | 41 | M6 | 2 | 40 | 0.5 | 0.04 ib |
| KWM 6 | M30X1.5 | 41 | 49 | 44 | 32 | 20 | 5 | 2 | 46 | M6 | 2 | 45 | 0.5 | 0.04 ib |
| KWM 7 | M35X1.5 | 46 | 54 | 49 | 38 | 22 | 5 | 2 | 50 | M6 | 2 | 50 | 0.5 | 0.04 ib |
| KWM 8 | M40X1.5 | 54 | 65 | 59 | 42 | 22 | 6 | 2.5 | 60 | M8 | 2 | 59.5 ib | 0.5 | 0.04 ib |
| KWM 9 | M45X1.5 | 60 | 70 | 64 | 48 | 22 | 6 | 2.5 | 65 | M8 | 2 | 65 | 0.5 | 0.04 ib |
| KWM 10 | M50X1.5 | 64 | 75 | 68 | 52 | 25 | 7 | 3 | 70 | M8 | 2.5 | 69.5 ib | 0.5 | 0.04 ib |
| KWM 11 | m55x 2 | 74 | 85 | 78 | 58 | 25 | 7 | 3 | 80 | M8 | 2.5 | 79.5 ib | 0.5 | 0.05 Nws |
| KWM 12 | m60x 2 | 78 | 90 | 82 | 62 | 26 | 8 | 3.5 | 85 | M8 | 2.5 | 84 | 0.5 | 0.05 Nws |
| KWM 13 | m65x 2 | 83 | 95 | 87 | 68 | 28 | 8 | 3.5 | 90 | M8 | 2.5 | 89 | 0.5 | 0.05 Nws |
| KWM 14 | m70x 2 | 88 | 100 | 92 | 72 | 28 | 8 | 3.5 | 95 | M8 | 2.5 | 94 | 0.5 | 0.05 Nws |
| KWM 15 | m75x 2 | 93 | 105 | 97 | 77 | 28 | 8 | 3.5 | 100 | M8 | 2.5 | 99 | 0.5 | 0.05 Nws |
| KWM 16 | m80x 2 | 98 | 110 | 100 | 83 | 32 | 8 | 3.5 | | M8 | 2.5 | 104 | 1 | 0.05 Nws |
| KWM 17 | m85x 2 | 107 | 120 | 110 | 88 | 32 | 10 | 4 | | M10 | 2.5 | 113.5 ib | 1 | 0.05 Nws |
| KWM 18 | m90x 2 | 112 | 125 | 115 | 93 | 32 | 10 | 4 | | M10 | 2.5 | 118.5 ib | 1 | 0.05 Nws |
| KWM 19 | m95x 2 | 117 | 130 | 120 | 98 | 32 | 10 | 4 | | M10 | 2.5 | 123.5 Nws | 1 | 0.05 Nws |
| KWM 20 | M100 X 2 | 122 | 135 | 125 | 103 | 32 | 10 | 4 | | M10 | 2.5 | 128.5 Nws | 1 | 0.05 Nws |
| KWM 22 | M110X2 | 132 | 145 | 134 | 112 | 32 | 10 | 4 | | M10 | 3 | 138.5 ib | 1 | 0.05 Nws |
| KWM 24 | M120X2 | 142 | 155 | 144 | 122 | 32 | 10 | 4 | | M10 | 3 | 148.5 ib | 1 | 0.05 Nws |
| KWM 26 | M130X2 | 152 | 165 | 154 | 132 | 32 | 12 | 5 | | M10 | 3 | 158.5 ib | 1 | 0.06 ib |
| KWM 28 | M140X2 | 162 | 175 | 164 | 142 | 32 | 14 | 6 | | M10 | 3 | 168.5 ib | 1 | 0.06 ib |
| KWM 30 | M150X2 | 172 | 185 | 174 | 152 | 32 | 14 | 6 | | M10 | 3 | 178.5 ib | 1 | 0.06 ib |
| KWM 32 | M160X3 | 182 | 195 | 184 | 162 | 32 | 14 | 6 | | M10 | 3 | 188.5 ib | 1 | 0.06 ib |
| KWM 34 | m170x 3 | 192 | 205 | 192 | 172 | 32 | 14 | 6 | | M10 | 3 | 198.5 ib | 1 | 0.06 ib |
| KWM 36 | m180x 3 | 202 | 215 | 204 | 182 | 32 | 16 | 7 | | M10 | 3 | 208.5 ib | 1 | 0.06 ib |
| KWM 38 | m190x 3 | 212 | 225 | 214 | 192 | 32 | 16 | 7 | | M10 | 3 | 218.5 ib | 1 | 0.06 ib |
| KWM 40 | M200x 3 | 222 | 235 | 224 | 202 | 32 | 18 | 8 | | M10 | 3 | 228.5 ib | 1 | 0.06 ib |
