AXS175200 Angular hu rau cov menyuam bearings AXS Featured duab

AXS175200 Angular hu rau cov menyuam bearings AXS

Lus piav qhia luv luv:

Angular hu rau cov menyuam bearings AXS suav nrog nyias, tsim cov kabmob rings, ntawm qhov kev txhaj tshuaj molded yas tawb nrog cylindrical rollers yog teem.Qhov ntev thiab kam rau ua ntawm cov khoom dov ua raws li DIN ISO 5402-1.Kev hloov kho kab sib txuas ntawm cov cylindrical rollers thiab raceways tiv thaiv kev puas tsuaj ntawm ntug kev ntxhov siab.

Nyob rau hauv sib piv rau piv axial dov bearings, series AXS muaj ib tug tshwj xeeb me me hla ntu, whilst lub load nqa peev xwm thiab tilting rigidity yog siab heev nyob rau hauv relation mus rau lub loaded installation qhov chaw.Vim qhov me me hla ntawm cov kabmob rings, radial seem qhov siab ntawm tsuas yog 7 hli mus rau 10 hli tuaj yeem ua tiav.Qhov no tso cai rau cov kabmob compact heev nrog lub siab thauj khoom nqa.

Xa email rau peb

Product Detail

Khoom cim npe

AXS175200 Angular hu rau cov menyuam bearings AXSnthuav davSpecifications:

Khoom siv: 52100 Chrome Hlau

Sib cuag lub kaum sab xis: 45°

Packing: Industrial packing lossis ib lub thawv ntim khoom

Qhov hnyav: 0.30 kg

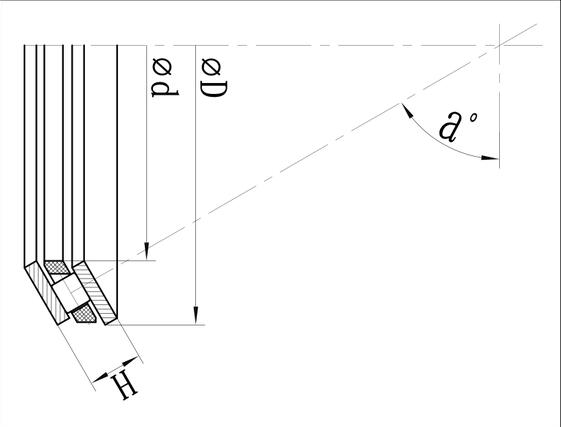

Main Qhov Loj:

Pob qhov taub (d): 175 mm

Sab nraud txoj kab uas hla (D): 199 mm

Qhov siab (H): 7.4 mm

Qhov siab kam rau ua: - 0.4mm txog 0.1mm

Centering ntawm ncej (da): 175 mm

Kev kam rau siab ntawm Centering ntawm ncej: -0.25mm - 0.15mm

Centering nyob rau hauv lub tsev (Da): 199 mm

Kev kam rau siab ntawm Centering hauv vaj tse: + 0.15mm txog + 0.25mm

Dynamic Axial load ratings (Ca): 84 KN

Static Axial load ntsuam xyuas (C0a): 480 KN

Dynamic Axial load ntsuam xyuas (Cr): 34.5 KN

Static Axial load ntsuam xyuas (C0ar): 96 KN
