    Cov khoom

    Stud hom pob bearing taug qab rollers yog npaj txhij-rau-haum, ib leeg lossis ob chav kab dov bearings raws li qhov sib sib zog nqus groove lossis angular hu rau pob bearings.Lawv muaj tshwj xeeb tuab-walled rings nrog ib tug crowned sab nraud nto (tseem muaj nrog ib tug cylindrical sab nraud nto. ntawm kev thov). Lub stud hom taug qab cov menyuam nrog lossis tsis muaj eccentric dab tshos yog cov khoom tiav uas muaj lub tshuab ua haujlwm, lub tshuab ntxhua khaub ncaws, lub nplhaib sab nraud thiab rab koob rau cov menyuam thiab lub tawb sib dhos lossis ib rab koob los yog cylindrical cov menyuam.

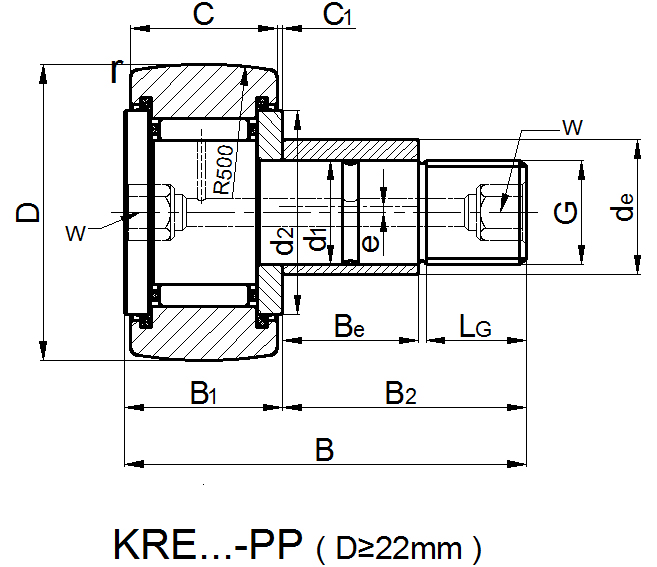

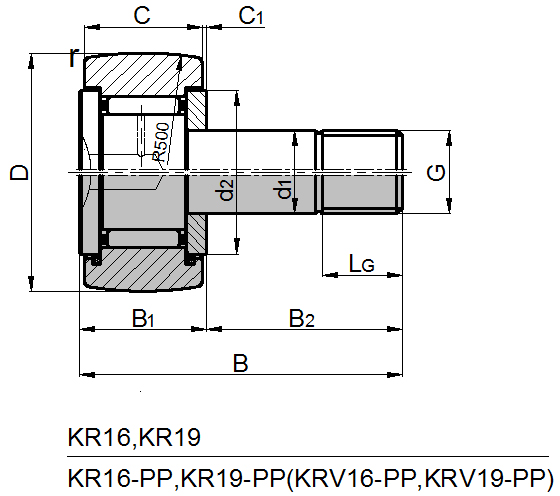

    Stud type track rollers: KR, KR...PP, KRE..PP, KRV..P
    Stud type track rollers
    Lub npe Nrog eccentric dab tshos Designation Qhov Loj (mm) G LG W eccentric dab tshos Basic load ntsuam xyuas
    D d1 B B1 max. B2 B3 C C1 r min. d2 d3 de Be e dyn ib. Cr KN stat. Cor KN
    KR22-PP KRE22-PP 22 10 36 13.2 23 - 12 0.6 0.3 17.5 Nws - M10X1 12 5 13 10 0.5 4.55 ib 5.3
    KRV22-PP - 22 10 36 13.2 23 - 12 0.6 0.3 17.5 Nws - M10X1 12 5 - - - 6.2 9.2 ib
    KR 26 - 26 10 36 13.2 23 - 12 0.6 0.3 17.5 Nws - M10X1 12 5 - - - 5.1 6.4
    KR26-PP KRE26-PP 26 10 36 13.2 23 - 12 0.6 0.3 17.5 Nws - M10X1 12 5 13 10 0.5 5.1 6.4
    KRV 26-PP - 26 10 36 13.2 23 - 12 0.6 0.3 17.5 Nws - M10X1 12 5 - - - 7.3 11.5
    KR 30 - 30 12 40 15.2 25 6 14 0.6 0.6 23 3 M12 X 1.5 13 6 - - - 6.8 8.6
    KR30-PP KRE30-PP 30 12 40 15.2 25 6 14 0.6 0.6 23 3 M12 X 1.5 13 6 15 11 0.5 6.8 8.6
    KRV 30-PP - 30 12 40 15.2 25 6 14 0.6 0.6 23 3 M12 X 1.5 13 6 - - - 9.5 ib 14.9 Nws
    KR32 - 32 12 40 15.2 25 6 14 0.6 0.6 23 3 M12 X 1.5 13 6 - - - 7.1 9.2 ib
    KR32-PP KRE32-PP 32 12 40 15.2 25 6 14 0.6 0.6 23 3 M12 X 1.5 13 6 15 11 0.5 7.1 9.2 ib
    KRV32-PP - 32 12 40 15.2 25 6 14 0.6 0.6 23 3 M12 X 1.5 13 6 - - - 10 16.1
    KR35 - 35 16 52 19.6 ib 32.5 ib 8 18 0.8 ua 0.6 27.6 ib 3 M16 X 1.5 17 8 - - - 9.7 ib 14.3
    KR35-PP KRE35-PP 35 16 52 19.6 ib 32.5 ib 8 18 0.8 ua 0.6 27.6 ib 3 M16 X 1.5 17 8 20 14 1 9.7 ib 14.3
    KRV35-PP - 35 16 52 19.6 ib 32.5 ib 8 18 0.8 ua 0.6 27.6 ib 3 M16 X 1.5 17 8 - - - 12.6 23.1
    KR40 - 40 18 58 21.6 ib 36.5 ib 8 20 0.8 ua 1 31.5 ib 3 M18X1.5 19 8 - - - 10.9 15.8 ib
    KR40-PP KRE40-PP 40 18 58 21.6 ib 36.5 ib 8 20 0.8 ua 1 31.5 ib 3 M18X1.5 19 8 22 16 1 10.9 15.8 ib
    KRV 40-PP - 40 18 58 21.6 ib 36.5 ib 8 20 0.8 ua 1 31.5 ib 3 M18X1.5 19 8 - - - 14.7 ib 26.5 ib
    KR47-PP KRE47-PP 47 20 66 25.6 ib 40.5 ib 9 24 0.8 ua 1 36.5 ib 4 M20 X 1.5 21 10 24 18 1 15.4 ib 26
    KRV47-PP - 47 20 66 25.6 ib 40.5 ib 9 24 0.8 ua 1 36.5 ib 4 M20 X 1.5 21 10 - - - 20.3 42
    KR52-PP KRE52-PP 52 20 66 25.6 ib 40.5 ib 9 24 0.8 ua 1 36.5 ib 4 M20 X 1.5 21 10 24 18 1 16.6 29
    KRV52-PP - 52 20 66 25.6 ib 40.5 ib 9 24 0.8 ua 1 36.5 ib 4 M20 X 1.5 21 10 - - - 22.3 48
    KR62-PP KRE62-PP 62 24 80 30.6 ib 49.5 ib 11 29 0.8 ua 1 44 4 M24 X 1.5 25 14 28 22 1 26 48
    KRV62-PP - 62 24 80 30.6 ib 49.5 ib 11 29 0.8 ua 1 44 4 M24 X 1.5 25 14 - - - 33.5 ib 75
    KR72-PP KRE72-PP 72 24 80 30.6 ib 49.5 ib 11 29 0.8 ua 1.1 44 4 M24 X 1.5 25 14 28 22 1 28 53
    KRV 72-PP - 72 24 80 30.6 ib 49.5 ib 11 29 0.8 ua 1.1 44 4 M24 X 1.5 25 14 - - - 36.5 ib 85
    KR80-PP KRE80-PP 80 30 100 37 63 15 35 1 1.1 53 4 M30X1.5 32 14 35 29 1.5 38.5 ib 77
    KRV 80-PP - 80 30 100 37 63 15 35 1 1.1 53 4 M30X1.5 32 14 - - - 48.5 ib 117
    KR90-PP KRE90-PP 90 30 100 37 63 15 35 1 1.1 53 4 M30X1.5 32 14 35 29 1.5 40.5 ib 83
    KRV 90-PP - 90 30 100 37 63 15 35 1 1.1 53 4 M30X1.5 32 14 - - - 52 129
    12>> Nplooj 1 / 2
