    Cov khoom

    Self-aligning pob bearings muaj ob kab ntawm cov npas, ib qho kev sib tw sphered nyob rau hauv lub nplhaib sab nrauv thiab ob qhov sib sib zog nqus raceway grooves nyob rau hauv lub nplhaib puab. nrog rau qhov chaw bearing. Qhov no tso cai rau lub nplhaib sab hauv, cov khoom, thiab lub tawb kom tig ywj siab nyob ib puag ncig ntawm qhov chaw bearing, tswj kev sib tw.
    Self-Aligning Pob Bearings

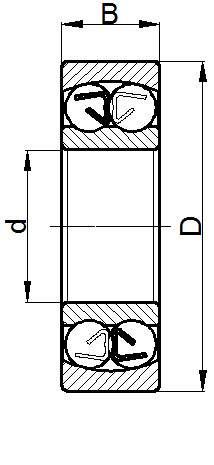

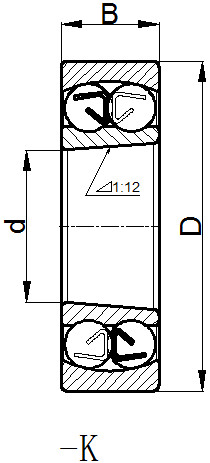

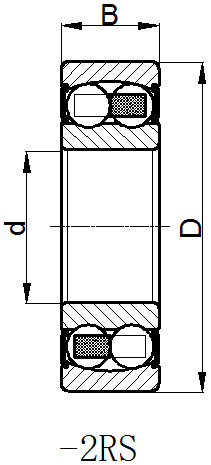

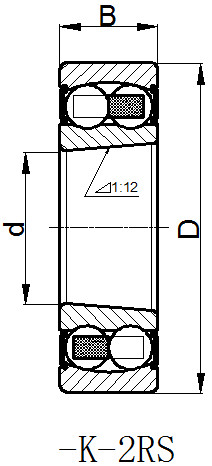

    Lub npe Qhov Loj (mm) Basic load ntsuam xyuas
    d D B r min. dyn ib. Cr KN stat. Cor KN
    135 5 19 6 0.3 2.6 0.48 ib
    126 6 19 6 0.3 2.6 0.48 ib
    127 7 22 7 0.3 2.75 ib 0.56 ib
    108 8 22 7 0.3 2.75 ib 0.56 ib
    129 9 26 8 0.6 3.95 ib 1
    1200 10 30 9 0.6 5.7 1.18
    2200-2RS-T 2 10 30 14 0.6 5.7 1.18
    2200 10 30 14 0.6 8.8 ib 1.73 ib
    1201 12 32 10 0.6 5.7 1.26
    2201-2 RS-T 12 32 14 0.6 5.7 1.26
    2201 12 32 14 0.6 9.4 ib 1.92 ib
    1202 15 35 11 0.6 7.7 1.73 ib
    2202-2RS-T: 2202-2RS-T 2202-2RS-T: 2202-2RS-T 2202-2RS-T 2202-2RS-T 2202-2RS-T 2202-2202-2RS-T: 2202-2RS-T ib 15 35 14 0.6 7.7 1.73 ib
    2202 15 35 14 0.6 9.6 ib 2.08 Nws
    2302 ib 15 42 17 1 17 3.7
    1203 17 40 12 0.6 8.1 2
    2203-2RS-T IB 17 40 16 0.6 8.1 2
    2203 17 40 16 0.6 11.8 ib 2.75 ib
    ib 1303 17 47 14 1 12.9 ib 3.15
    2303-2RS-T: 2303-2RS-T ib 17 47 19 1 12.9 ib 3.15
    2303 ib 17 47 19 1 13.9 Nws 3.15
    1204k ua 20 47 14 1 10.1 2.6
    1204 20 47 14 1 10.1 2.6
    2204-2RS-T UAS 20 47 18 1 10.1 2.6
    2204 ib 20 47 18 1 14.7 ib 3.5
    1304 ib 20 52 15 1.1 12.7 ib 3.3
    2304-2RS-T, IB 20 52 21 1.1 12.7 ib 3.3
    2304 ib 20 52 21 1.1 17.6 ib 4.25 ib
    1205k ua 25 52 15 1 12.3 3.25
    1205 25 52 15 1 12.3 3.25
    2205-2RS-T IB 25 52 18 1 12.3 3.25
    2205K-2RS-T TSI 25 52 18 1 12.3 3.25
    2205k ua 25 52 18 1 17.3 ib 4.4
    2205 25 52 18 1 17.3 ib 4.4
    1305k ua 25 62 17 1.1 18.3 ib 4.95 ib
    1305 ib 25 62 17 1.1 18.3 ib 4.95 ib
    2305-2RS-T: 2305-2RS-T ib 25 62 24 1.1 18.3 ib 4.95 ib
    2305k ua 25 62 24 1.1 25 6.5
    2305 ib 25 62 24 1.1 25 6.5
    1206k ua 30 62 16 1 15.9 ib 4.6
    1206 30 62 16 1 15.9 ib 4.6
    2206-2RS-T IB 30 62 20 1 15.9 ib 4.6
    2206K-2RS-T TSI 30 62 20 1 15.9 ib 4.6
    2206k ua 30 62 20 1 26 6.9
    2206 30 62 20 1 26 6.9
    1306k ua 30 72 19 1.1 21.7 ib 6.3
    1306 ib 30 72 19 1.1 21.7 ib 6.3
    2306-2RS-T, 2306-2 TSi 30 72 27 1.1 21.7 ib 6.3
    2306k ua 30 72 27 1.1 32.5 ib 8.7 ib
    2306 ib 30 72 27 1.1 32.5 ib 8.7 ib
    1207k ua 35 72 17 1.1 16 5.1
    1207 35 72 17 1.1 16 5.1
    2207-2RS-T 2207-2207-2207-2207-2207-2207-2207-2207-2207 2207-2 RS-T 2207-2RS-T 2207-2207-2207-2207-2207 2207-2 RS-T 2207-2RS-T 2207-2RS-T 2207-2207-2207-2207- 2207-2207-2207-2207-2207-2207 1 35 72 23 1.1 16 5.1
    2207K-2RS-T TSI 35 72 23 1.1 16 5.1
    2207k ua 35 72 23 1.1 33 8.9 ib
    2207 ib 35 72 23 1.1 33 8.9 ib
    1307k ua 35 80 21 1.5 25.5 ib 7.8 ib
    1307 ib 35 80 21 1.5 25.5 ib 7.8 ib
    2307-2RS-T: 2307-2RS-T, 2307-2RS-T ib 35 80 31 1.5 25.5 ib 7.8 ib
    2307k ua 35 80 31 1.5 40.5 ib 11.1
    2307 ib 35 80 31 1.5 40.5 ib 11.1
    1208k ua 40 80 18 1.1 19.4 ib 6.5
    1208 40 80 18 1.1 19.4 ib 6.5
    2208-2RS-T IB 40 80 23 1.1 19.4 ib 6.5
    2208K-2RS-T TSI 40 80 23 1.1 19.4 ib 6.5
    2208k ua 40 80 23 1.1 32.5 ib 9.4 ib
    2208 40 80 23 1.1 32.5 ib 9.4 ib
    1308k ua 40 90 23 1.5 30 9.6 ib
    1308 ib 40 90 23 1.5 30 9.6 ib
    2308-2RS-T: 2308-2RS-TW 1 40 90 33 1.5 30 9.6 ib
    2308k ua 40 90 33 1.5 46 13.4
    2308 ib 40 90 33 1.5 46 13.4
    1209k ua 45 85 19 1.1 22 7.3
    1209 45 85 19 1.1 22 7.3
    2209-2RS-T IB 45 85 23 1.1 22 7.3
    2209K-2RS-T TSI 45 85 23 1.1 22 7.3
    2209k ua 45 85 23 1.1 28.5 Nws 8.9 ib
    2209 ib 45 85 23 1.1 28.5 Nws 8.9 ib
    1309k ua 45 100 25 1.5 38.5 ib 12.6
    1309 ib 45 100 25 1.5 38.5 ib 12.6
    2309-2RS-T: 2309-2RS-T ib 45 100 36 1.5 38.5 ib 12.6
    2309k ua 45 100 36 1.5 55 16.5 ib
    2309 ib 45 100 36 1.5 55 16.5 ib
    1210k ua 50 90 20 1.1 22.9 ib 8
    1210 50 90 20 1.1 22.9 ib 8
    2210-2RS-T IB 50 90 23 1.1 22.9 ib 8
    2210K-2RS-T TSI 50 90 23 1.1 22.9 ib 8
    2210k ua 50 90 23 1.1 28.5 Nws 9.4 ib
    2210 50 90 23 1.1 28.5 Nws 9.4 ib
    1310k ua 50 110 27 2 42 14.1
    1310 50 110 27 2 42 14.1
    2310-2RS-T: 2310-2 TSi 50 110 40 2 42 14.1
    2310 ib 50 110 40 2 66 19.9 Nws
    1211k ua 55 100 21 1.5 25.65 Nws 9.41 ib
    1211 55 100 21 1.5 25.65 Nws 9.41 ib
    2211-2RS-T 55 100 25 1.5 25.65 Nws 9.41 ib
    2211K-2RS-T 55 100 25 1.5 25.65 Nws 9.41 ib
    2211k ua 55 100 25 1.5 37.05 Nws 11.78 Nws
    2211 ib 55 100 25 1.5 37.05 Nws 11.78 Nws
    1311k ua 55 120 29 2 49.4 ib 16.82 Nws
    1311 55 120 29 2 49.4 ib 16.82 Nws
    2311-2RS-T: 2311-2 TSi 55 120 43 2 49.4 ib 16.82 Nws
    2311k ua 55 120 43 2 73.15 Nws 22.61 Nws
    2311 ib 55 120 43 2 73.15 Nws 22.61 Nws
    1212k ua 60 110 22 1.5 28.98 Nws 10.83 Nws
    1212 60 110 22 1.5 28.98 Nws 10.83 Nws
    2212-2RS-T IB 60 110 28 1.5 28.98 Nws 10.83 Nws
    2212K-2RS-T TSI 60 110 28 1.5 28.98 Nws 10.83 Nws
    2212k ua 60 110 28 1.5 45.6 ib 15.49 Nws
    2212 ib 60 110 28 1.5 45.6 ib 15.49 Nws
    1312k ua 60 130 31 2.1 55.1 ib 19.57 Nws
    1312 60 130 31 2.1 55.1 ib 19.57 Nws
    2312k ua 60 130 46 2.1 84.55 ib 26.6 ib
    2312 ib 60 130 46 2.1 84.55 ib 26.6 ib
    1213k ua 65 120 23 1.5 29.45 Nws 11.78 Nws
    1213 65 120 23 1.5 29.45 Nws 11.78 Nws
    2213-2RS-T: 2213-2 TSi 65 120 31 1.5 29.45 Nws 11.78 Nws
    2213K-2RS-T TSI 65 120 31 1.5 29.45 Nws 11.78 Nws
    2213k ua 65 120 31 1.5 55.1 ib 18.05 Nws
    2213 65 120 31 1.5 55.1 ib 18.05 Nws
    1313k ua 65 140 33 2.1 59.85 ib 21.57 Nws
    1313 65 140 33 2.1 59.85 ib 21.57 Nws
    2 313k 65 140 48 2.1 93.1 ib 30.4 ib
    23 13 65 140 48 2.1 93.1 ib 30.4 ib
    1214k ua 70 125 24 1.5 33.25 Nws 13.02 Nws
    1214 70 125 24 1.5 33.25 Nws 13.02 Nws
    2214-2RS-T: 2214-2RS-T ib 70 125 31 1.5 33.25 Nws 13.02 Nws
    2214 ib 70 125 31 1.5 41.8 ib 16.06 Nws
    1314 ib 70 150 35 2.1 71.25 Nws 26.13 Nws
    2314 ib 70 150 51 2.1 106.4 ib 35.15 Nws
    1215k ua 75 130 25 1.5 37.05 Nws 14.73 Nws
    1215 75 130 25 1.5 37.05 Nws 14.73 Nws
    2215k ua 75 130 31 1.5 42.28 Nws 16.72 Nws
    2215 ib 75 130 31 1.5 42.28 Nws 16.72 Nws
    1315k ua 75 160 37 2.1 76 28.03 Nws
    1315 75 160 37 2.1 76 28.03 Nws
    2315k ua 75 160 55 2.1 117.8 ib 39.9 ib
    2315 ib 75 160 55 2.1 117.8 ib 39.9 ib
    1216k ua 80 140 26 2 38 15.96 Nws
    1216 80 140 26 2 38 15.96 Nws
    2216k ua 80 140 33 2 47.03 Nws 18.81 Nws
    2216 80 140 33 2 47.03 Nws 18.81 Nws
    1316k ua 80 170 39 2.1 84.55 ib 31.35 Nws
    1316 80 170 39 2.1 84.55 ib 31.35 Nws
    2316k ua 80 170 58 2.1 132.05 Nws 46.08 Nws
    2 316 80 170 58 2.1 132.05 Nws 46.08 Nws
    1217k ua 85 150 28 2 47.03 Nws 19.57 Nws
    1217 85 150 28 2 47.03 Nws 19.57 Nws
    2217k ua 85 150 36 2 56.05 Nws 22.23 Nws
    2217 ib 85 150 36 2 56.05 Nws 22.23 Nws
    1317k ua 85 180 41 3 94.05 ib 35.63 ib
    1317 ib 85 180 41 3 94.05 ib 35.63 ib
    2317k ua 85 180 60 3 135.85 Nws 48.45 Nws
    2317 ib 85 180 60 3 135.85 Nws 48.45 Nws
    1218k ua 90 160 30 2 54.15 Nws 22.14 Nws
    1218 90 160 30 2 54.15 Nws 22.14 Nws
    2218k ua 90 160 40 2 67.45 ib 27.08 Nws
    2218 ib 90 160 40 2 67.45 ib 27.08 Nws
    1318k ua 90 190 43 3 103.55 Nws 40.38 Nws
    1318 90 190 43 3 103.55 Nws 40.38 Nws
    2318k ua 90 190 64 3 148.2 ib 54.15 Nws
    2318 ib 90 190 64 3 148.2 ib 54.15 Nws
    1219k ua 95 170 32 2.1 57.6 ib 24.3
    1219 95 170 32 2.1 57.6 ib 24.3
    2219k ua 95 170 43 2.1 75.6 ib 30.6 ib
    2219 ib 95 170 43 2.1 75.6 ib 30.6 ib
    1319k ua 95 200 45 3 120.6 ib 45
    1319 ib 95 200 45 3 120.6 ib 45
    2319k ua 95 200 67 3 150.3 ib 56.7 ib
    2319 ib 95 200 67 3 150.3 ib 56.7 ib
    1220k ua 100 180 34 2.1 63 26.55 Nws
    1220 100 180 34 2.1 63 26.55 Nws
    2220k ua 100 180 46 2.1 88.2 ib 36
    2220 100 180 46 2.1 88.2 ib 36
    1320k ua 100 215 47 3 130.5 Nws 51.3 ib
    1320 100 215 47 3 130.5 Nws 51.3 ib
    2320k ua 100 215 73 3 176.4 ib 70.2 ib
    23 20 100 215 73 3 176.4 ib 70.2 ib
    1221 105 190 36 2.1 67.5 ib 28.8 ib
    1321 ib 105 225 49 3 142.2 ib 57.6 ib
    1222k ua 110 200 38 2.1 80.1 ib 34.2 ib
    1222 110 200 38 2.1 80.1 ib 34.2 ib
    2222k ua 110 200 53 2.1 113.4 ib 45.9 ua
    2222 ib 110 200 53 2.1 113.4 ib 45.9 ua
    1322k ua 110 240 50 3 148.5 ib 63.9 ua
    1322 ib 110 240 50 3 148.5 ib 63.9 ua
    2322k ua 110 240 80 3 198.9 ib 84.6 ib
    2322 ib 110 240 80 3 198.9 ib 84.6 ib
    1224 120 215 42 2.1 108.9 ib 46.8 ib
    1226 130 230 46 3 112.5 ib 49.5 ib
    1228 140 250 50 3 146.7 ib 66.6 ib
    1230 150 270 54 3 162 77.4 ib
    11204 ib 20 47 14 10 2.65 ib
    11205 ib 25 52 15 12.2 3.35 Nws
    11206 ib 30 62 16 15.6 ib 4.65 ib
    11207 ib 35 72 17 16 5.2
    11208 ib 40 80 18 19.3 ib 6.55 ib
    11209 ib 45 85 19 22 7.35 Nws
    11210 ib 50 90 20 22.8 ib 8.15 Nws
    11212 ib 60 110 22 30 11.6
    11305 ib 25 62 17 19 5.4
    ib 11306 30 72 19 22.5 ib 6.8
    11307 ib 35 80 21 26.5 ib 8.5
    ib 11308 40 90 23 33.8 ib 11.2
    11 310 50 110 27 43.6 ib 14
