    Cov khoom

    Qws xaus muaj ib lub qhov muag zoo li lub taub hau nrog ib tug shank uas tsim ib lub vaj tse rau ib tug kheej kheej kheej bearing. Lawv yog siv feem ntau ntawm qhov kawg ntawm hydraulic lossis pneumatic pistons los koom nrog lub tog raj kheej rau ib qho kev cuam tshuam. Qws Kawg yog ib lub voj voos kheej kheej sib txuas nrog lub nplhaib puab kheej kheej nrog qhov tseeb thiab qhov nyuaj sib npaug ntawm cov pob bearings steel.

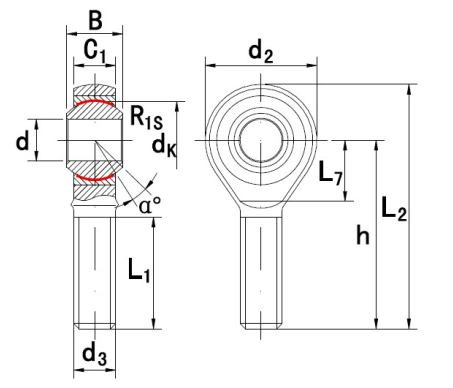

    ROD ENDS: SA..TK
    Yam khoom Dimensions mm
    d d3 B C1 L1 d2 L7 h L2 dk R1s
    6g min min
    SA5T/K 5 m5x 0.8 8 6 19 18 33 42 11.11 Nws 0.3
    SA6T/K 6 m6x 1.0 9 6.75 ib 21 20 36 46 12.7 ib 0.3
    SA8T/K 8 M8x1.25 12 9 25 24 42 54 15.875 Nws 0.3
    SA10T/K 10 M10x1.5 14 10.5 28 28 28 62 19.05 Nws 0.3
    SA12 T/K 12 M12x1.75 16 12 32 32 54 70 22.225 Nws 0.3
    SA12-1T/K 12 M12x1.25 16 12 32 32 54 70 22.225 Nws 0.3
    SA14T/K 14 M14x 2.0 19 13.5 Nws 36 36 18 60 78 25.4 ib 0.3
    SA16T/K 16 M16x 2.0 21 15 37 42 21 66 87 28.575 Nws 0.3
    SA16-1T/K 16 M16x1.5 21 15 37 42 21 66 87 28.575 Nws 0.3
    SA18T/K 18 M18x1.5 23 16.5 ib 41 44 22 72 94 31.75 Nws 0.3
    SA20 T/K 20 M20x1.5 25 18 45 50 25 78 103 34.925 ib 0.3
    SA22T/K 22 M22x1.5 28 20 48 54 27 84 111 38.1 ib 0.3
    SA25T/K 25 M24x 2.0 31 22 55 60 30 94 124 42.86 ib 0.3
    SA28T/K 28 m27x 0 35 24 62 66 33 103 136 47.63 ib 0.3
    SA30T/K 30 M30x2.0 37 25 66 70 35 110 145 50.8 ib 0.3
    SA35T/K 35 m36x 2.0 43 28 85 81 40 140 180.5 Nws 57.15 Nws 0.3
    SA40 T/K 40 m42x 2.0 49 33 90 91 45 150 195.5 ib 66.67 ib 0.3
    SA50T/K 50 m48x 2.0 60 45 105 117 58 185 243.5 ib 82.5 ib 0.3
    123456>> Nplooj 1 / 6
