    Cov khoom

    Precision xauv ceev yog cov kabmob accessories rau cov ntsia hlau tsav. Lawv yog siv los ua kom tiav ib qho kev txiav txim siab axial preload hauv axial angular contact pob bearings rau cov ntsia hlau tsav thiab axial / radial roller bearings rau cov ntsia hlau tsav. Precision lock txiv ntseej tseem siv tau rau hauv lwm daim ntawv thov uas siab axial rog yuav tsum tau txais kev txhawb nqa thiab siab axial khiav tawm qhov raug thiab rigidity yuav tsum tau.
    Precision xauv ceev: KMTA series

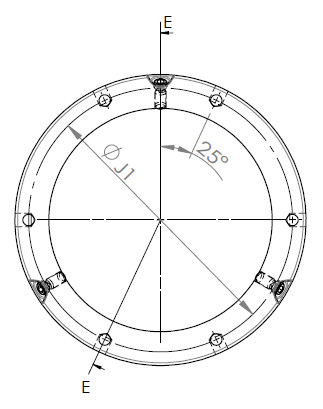

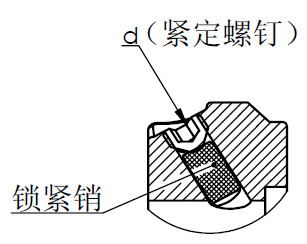

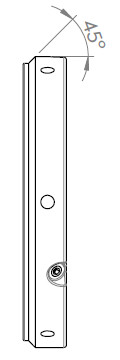

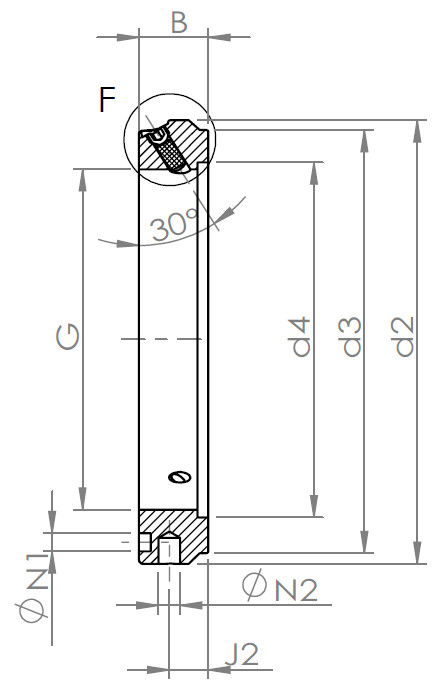

    Yam khoom G d2 d3 d4 B J1 J2 N1 N2 d
    KMTA 5 M25x1.5 42 35 26 20 32.5 ib 11 4.3 4 M6
    KMTA 6 M30x1.5 48 40 32 20 40.5 ib 11 4.3 5 M6
    KMTA 7 M35x1.5 53 47 38 20 45.5 ib 11 4.3 5 M6
    KMTA 8 M40x1.5 58 52 42 22 50.5 ib 12 4.3 5 M6
    KMTA 9 m45x 1.5 68 58 48 22 58 12 4.3 6 M6
    KMTA 10 M50x1.5 70 63 52 24 61.5 ib 13 4.3 6 M6
    KWM 11 m55x 1.5 75 70 58 24 66.5 ib 13 4.3 6 M6
    KWM 12 M60x1.5 84 75 62 24 74.5 ib 13 5.3 6 M8
    KMTA 13 m65x 1.5 88 80 68 25 78.5 ib 13 5.3 6 M8
    KWM 14 m70x 1.5 95 86 72 26 85 14 5.3 8 M8
    KWM 15 m75x 1.5 100 91 77 26 88 13 6.4 8 M8
    KWM 16 m80x 2 110 97 83 30 95 16 6.4 8 M8
    KWM 17 m85x 2 115 102 88 32 100 17 6.4 8 M10
    KWM 18 m90x 2 120 110 93 32 108 17 6.4 8 M10
    KWM 19 m95x 2 125 114 98 32 113 17 6.4 8 M10
    KWM 20 M100x 2 130 120 103 32 118 17 6.4 8 M10
    KWM 22 M110x 2 140 132 112 32 128 17 6.4 8 M10
    KWM 24 M120x 2 155 142 122 32 140 17 6.4 8 M10
    KWM 26 m130x 3 165 156 132 32 153 17 6.4 8 M10
    KWM 28 m140x 3 180 166 142 32 165 17 6.4 10 M10
    KWM 30 m150x 3 190 180 152 32 175 17 6.4 10 M10
    KWM 32 m160x 3 205 190 162 32 185 17 8.4 ib 10 M10
    KWM 34 m170x 3 215 205 172 32 195 17 8.4 ib 10 M10
    KWM 36 m180x 3 230 215 182 32 210 17 8.4 ib 10 M10
    KWM 38 m190x 3 240 225 192 32 224 17 8.4 ib 10 M10
    KWM 40 m200x 3 245 237 202 32 229 17 8.4 ib 10 M10
