    Cov khoom

    Plummer Block Housings yog phua bearing vaj tse rau qhov haum ntawm tus kheej aligning pob los yog kheej kheej cov menyuam bearings.Plummer Block feem ntau yog mounted nyob rau hauv ib puag ncig huv si & feem ntau yog meant rau tsawg dua loads ntawm kev lag luam.Bearing vaj tse yog cais hom los yog unsplit hom. Split type housings feem ntau yog ob daim vaj tsev nyob qhov twg lub hau thiab lub hauv paus tuaj yeem raug tshem tawm.

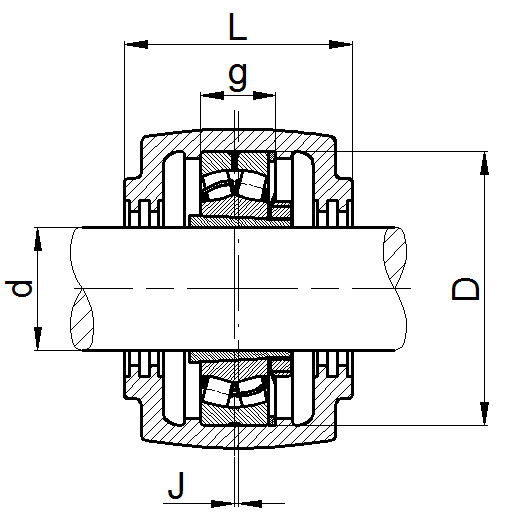

    Plummer Block & Housing: SNL3100
    Tsev Tsis muaj d qab D a b c g h L W m n u v J S Cov kabmob Lub tes tsho Nrhiav Ring
    Tshooj No qty ib
    TIAB SA 3134 150 280 510 180 70 108 170 230 333 430 100 28 34 14 M24 23 134k H3134 TIAB SA 3134 Loj: SR280 * 10 2
    TIAB SA 3136 160 300 530 190 75 116 180 240 353 450 110 28 34 15 M24 23136k ua H3136 TIAB SA 3136 SR300 * 10 2
    TIAB SA 3138 170 320 560 210 80 124 190 260 375 480 120 28 34 10 M24 23138k ua H3138 TIAB SA 3138 SR320 * 10 2
    TIAB SA 3140 180 340 610 230 85 132 210 280 411 510 130 35 42 10 M30 23 140k H3140 TIAB SA 3140 340 * 10 2
    TIAB SA 3144 200 370 640 240 90 140 220 290 434 ib 540 140 35 42 12 M30 23 144k H3144 370 * 10 2
    TIAB SA 3148 220 400 700 260 95 148 240 310 474 ib 600 150 35 42 12 M30 23 148k H3148 SR4000 * 10 2
    TIAB SA 3152 240 440 770 ib 280 100 164 260 320 516 650 160 42 50 13 M36 23152k ua H3152 SR440 * 10 2
    TIAB SA 3156 260 460 790 ib 280 105 166 280 320 551 ib 670 ib 160 42 50 16 M36 23156k ua H3156 SR460 * 10 2
    TIAB SA 3160 280 500 8 30 310 110 180 300 350 591 ib 710 ib 190 42 50 22 M36 23160k ua H3160 SR500 * 10 2
    TIAB SA 3164 300 540 880 ua 330 115 196 320 370 631 ib 750 200 42 50 23 M36 23164k ua H3164 540 * 10 2
    << < Ua ntej3456789Tom ntej no>>> Nplooj 6 / 14
