    Cov khoom

    ob kab angular hu rau pob bearings sib haum mus rau ob kab ib leeg angular hu pob bearings teem rov qab-rau-rov qab. Ob-kab angular hu rau pob bearings feem ntau yog siv los ua qhov kawg-kawg bearings raws li lawv tuaj yeem txhawb nqa axial loads nyob rau hauv ob qho tib si cov lus qhia thiab muaj peev xwm coj lub sijhawm loads.Cov bearings feature nias steel tawb.
    Ob kab

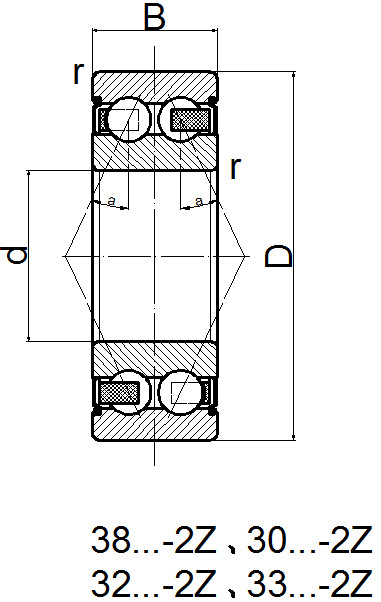

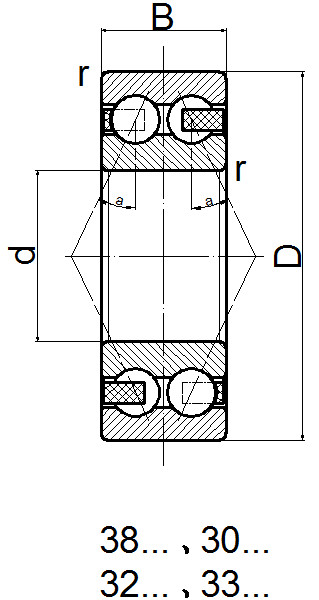

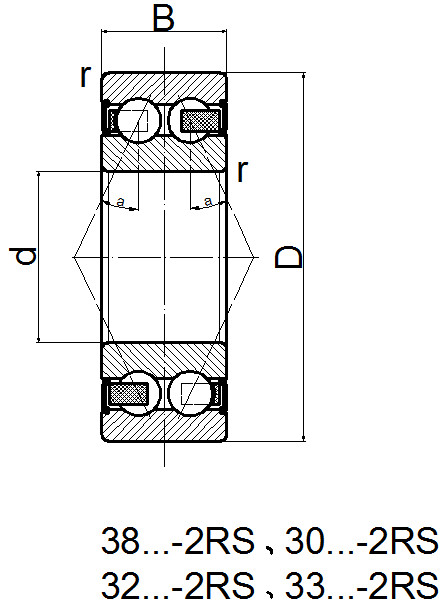

    Lub npe Qhov Loj (mm) Basic load ntsuam xyuas
    d D B r min. dyn ib. Cr KN stat. Cor KN
    30/5 5 14 7 0.2 1.81 ib 0.95 ib
    30/5-2 ZPO 5 14 7 0.2 1.81 ib 0.95 ib
    30/5-2RS 5 14 7 0.2 1.81 ib 0.95 ib
    30/6 6 17 9 0.3 3.1 1.42 ib
    30/6-2 ZPO 6 17 9 0.3 3.1 1.42 ib
    30/6-2RS 6 17 9 0.3 3.1 1.42 ib
    30/7 7 19 10 0.3 3.65 ib 1.7
    30/7-2 ZPO 7 19 10 0.3 3.65 ib 1.7
    30/7-2RS 7 19 10 0.3 3.65 ib 1.7
    30/8 8 22 11 0.3 5.2 2.65 ib
    30/8-2 ZPO 8 22 11 0.3 5.2 2.65 ib
    30/8-2RS 8 22 11 0.3 5.2 2.65 ib
    3800 ib 10 19 7 0.3 2.12 1.4
    3800-2 ZPO 10 19 7 0.3 2.12 1.4
    3800-2 RS 10 19 7 0.3 2.12 1.4
    3000 10 26 12 0.3 5.7 3.25
    3000-2 ZPO 10 26 12 0.3 5.7 3.25
    3000-2RS 10 26 12 0.3 5.7 3.25
    3200 10 30 14 0.6 7.8 ib 4.55 ib
    3200-2 ZPO 10 30 14 0.6 7.8 ib 4.55 ib
    ib 3801 12 21 7 0.3 2.19 ib 1.55 ib
    3801-2 ZPO 12 21 7 0.3 2.19 ib 1.55 ib
    3801-2 TSI 12 21 7 0.3 2.19 ib 1.55 ib
    3001 12 28 12 0.3 6.2 3.75 ib
    3001-2 ZPO 12 28 12 0.3 6.2 3.75 ib
    3001-2 RS 12 28 12 0.3 6.2 3.75 ib
    ib 3201 12 32 15.9 ib 0.6 10.6 5.85 ib
    3201-2 ZPO 12 32 15.9 ib 0.6 10.6 5.85 ib
    ib 3802 15 24 7 0.3 2.43 ib 1.96 ib
    3802-2 ZPO 15 24 7 0.3 2.43 ib 1.96 ib
    3802-2 TSI 15 24 7 0.3 2.43 ib 1.96 ib
    3002 15 32 13 0.3 8.6 5.4
    3002-2 ZPO 15 32 13 0.3 8.6 5.4
    3002-2 RS 15 32 13 0.3 8.6 5.4
    ib 3202 15 35 15.9 ib 0.6 11.8 ib 7.1
    3202-2 ZPO 15 35 15.9 ib 0.6 11.8 ib 7.1
    3202-2 RS 15 35 15.9 ib 0.6 11.8 ib 7.1
    ib 3302 15 42 19 1 16.3 10
    ib 3803 17 26 7 0.3 2.48 ib 2.08 Nws
    3803-2 ZPO 17 26 7 0.3 2.48 ib 2.08 Nws
    3803-2 TSI 17 26 7 0.3 2.48 ib 2.08 Nws
    3003 17 35 14 0.3 9.2 ib 6.2
    3003-2 ZPO 17 35 14 0.3 9.2 ib 6.2
    3003-2 RS 17 35 14 0.3 9.2 ib 6.2
    ib 3203 17 40 17.5 Nws 0.6 14.6 ib 9
    3203-2 ZPO 17 40 17.5 Nws 0.6 14.6 ib 9
    3203-2 TSİ 17 40 17.5 Nws 0.6 14.6 ib 9
    ib 3303 17 47 22.2 1 20.8 ib 12.5 Nws
    ib 3804 20 32 10 0.3 5.8 4.85 ib
    3804-2 ZPO 20 32 10 0.3 5.8 4.85 ib
    3804-2 TSI 20 32 10 0.3 5.8 4.85 ib
    3004 20 42 16 0.6 14.5 ib 9.6 ib
    3004-2 ZPO 20 42 16 0.6 14.5 ib 9.6 ib
    3004-2 RS 20 42 16 0.6 14.5 ib 9.6 ib
    ib 3204 20 47 20.6 ib 1 19.6 ib 12.5 Nws
    3204-2 ZPO 20 47 20.6 ib 1 19.6 ib 12.5 Nws
    ib 3304 20 52 22.2 1.1 23.2 15
    3304-2 ZPO 20 52 22.2 1.1 23.2 15
    3304-2 TSI 20 52 22.2 1.1 23.2 15
    ib 3805 25 37 10 0.3 6 5.6
    3805-2 ZPO 25 37 10 0.3 6 5.6
    3805-2 TSİ 25 37 10 0.3 6 5.6
    3005 25 47 16 0.6 15.5 ib 11.1
    3005-2 ZPO 25 47 16 0.6 15.5 ib 11.1
    3005-2 RS 25 47 16 0.6 15.5 ib 11.1
    ib 3205 25 52 20.6 ib 1 21.2 14.6 ib
    3205-2 ZPO 25 52 20.6 ib 1 21.2 14.6 ib
    3205-2 TSİ 25 52 20.6 ib 1 21.2 14.6 ib
    ib 3305 25 62 25.4 ib 1.1 30 20
    3305-2 ZPO 25 62 25.4 ib 1.1 30 20
    3305-2 TSİ 25 62 25.4 ib 1.1 30 20
    ib 3806 30 42 10 0.3 6.3 6.1
    3806-2 ZPO 30 42 10 0.3 6.3 6.1
    3806-2 TSİ 30 42 10 0.3 6.3 6.1
    3006 30 55 19 1 20.3 15.6 ib
    3006-2 ZPO 30 55 19 1 20.3 15.6 ib
    3006-2 RS 30 55 19 1 20.3 15.6 ib
    ib 3206 30 62 23.8 ib 1 30 21.2
    3206-2 ZPO 30 62 23.8 ib 1 30 21.2
    3206-2 RS 30 62 23.8 ib 1 30 21.2
    ib 3306 30 72 30.2 ib 1.1 41.5 ib 28.5 Nws
    3306-2 ZPO 30 72 30.2 ib 1.1 41.5 ib 28.5 Nws
    3306-2 RS 30 72 30.2 ib 1.1 41.5 ib 28.5 Nws
    ib 3807 35 47 10 0.3 6.7 7
    3807-2 ZPO 35 47 10 0.3 6.7 7
    3807-2 TSİ 35 47 10 0.3 6.7 7
    3007 ib 35 62 20 1 24.5 ib 19.4 ib
    3007-2 ZPO 35 62 20 1 24.5 ib 19.4 ib
    3007-2 RS 35 62 20 1 24.5 ib 19.4 ib
    ib 3207 35 72 27 1.1 39 28.5 Nws
    3207-2 ZPO 35 72 27 1.1 39 28.5 Nws
    3207-2 TSİ 35 72 27 1.1 39 28.5 Nws
    ib 3307 35 80 34.9 ib 1.5 51 34.5 ib
    3307-2 ZPO 35 80 34.9 ib 1.5 51 34.5 ib
    3307-2 TSI 35 80 34.9 ib 1.5 51 34.5 ib
    ib 3808 40 52 10 0.3 7 7.8 ib
    3808-2 ZPO 40 52 10 0.3 7 7.8 ib
    3808-2 TSI 40 52 10 0.3 7 7.8 ib
    3008 40 68 21 1 25.5 ib 21.7 ib
    3008-2 ZPO 40 68 21 1 25.5 ib 21.7 ib
    3008-2 RS 40 68 21 1 25.5 ib 21.7 ib
    ib 3208 40 80 30.2 ib 1.1 48 36.5 ib
    3208-2 ZPO 40 80 30.2 ib 1.1 48 36.5 ib
    3208-2 RS 40 80 30.2 ib 1.1 48 36.5 ib
    ib 3308 40 90 36.5 ib 1.5 62 45
    3308-2 ZPO 40 90 36.5 ib 1.5 62 45
    3308-2 TSI 40 90 36.5 ib 1.5 62 45
    ib 3809 45 58 10 0.3 7.2 8.3
    3809-2 ZPO 45 58 10 0.3 7.2 8.3
    3809-2 TSI 45 58 10 0.3 7.2 8.3
    ib 3209 45 85 30.2 ib 1.1 48 37.5 ib
    3209-2 ZPO 45 85 30.2 ib 1.1 48 37.5 ib
    3209-2 RS 45 85 30.2 ib 1.1 48 37.5 ib
    ib 3309 45 100 39.7 ib 1.5 68 51
    3309-2 ZPO 45 100 39.7 ib 1.5 68 51
    3309-2 TSİ 45 100 39.7 ib 1.5 68 51
    ib 3810 50 65 12 0.3 8.7 ib 10.4
    3810-2 ZPO 50 65 12 0.3 8.7 ib 10.4
    3810 - 2 RS 50 65 12 0.3 8.7 ib 10.4
    3 210 50 90 30.2 ib 1.1 51 42.5 ib
    3210-2 ZPO 50 90 30.2 ib 1.1 51 42.5 ib
    3210-2 RS 50 90 30.2 ib 1.1 51 42.5 ib
    3 310 50 110 44.4 ib 2 81.5 ib 62
    3310-2 ZPO 50 110 44.4 ib 2 81.5 ib 62
    3310-2 TSİ 50 110 44.4 ib 2 81.5 ib 62
    ib 3811 55 72 13 0.3 12.1 15.7 ib
    3811-2 ZPO 55 72 13 0.3 12.1 15.7 ib
    3811-2 TSI 55 72 13 0.3 12.1 15.7 ib
    3211 ib 55 100 33.3 1.5 58.5 ib 49
    3211-2 ZPO 55 100 33.3 1.5 58.5 ib 49
    3211-2 RS 55 100 33.3 1.5 58.5 ib 49
    ib 3311 55 120 49.2 ib 2 102 78
    3311-2 ZPO 55 120 49.2 ib 2 102 78
    3311-2 TSI 55 120 49.2 ib 2 102 78
    ib 3812 60 78 14 0.3 14.5 ib 17.5 Nws
    3812-2 ZPO 60 78 14 0.3 14.5 ib 17.5 Nws
    3812-2 TSI 60 78 14 0.3 14.5 ib 17.5 Nws
    3212 ib 60 110 36.5 ib 1.5 72 61
    3212-2 ZPO 60 110 36.5 ib 1.5 72 61
    3212-2 RS 60 110 36.5 ib 1.5 72 61
    3312 ib 60 130 54 2.1 125 98
    3312-2 ZPO 60 130 54 2.1 125 98
    3312-2 TSİ 60 130 54 2.1 125 98
    ib 3813 65 85 15 0.6 17.7 ib 21.4 ib
    3813-2 ZPO 65 85 15 0.6 17.7 ib 21.4 ib
    3813-2 TSI 65 85 15 0.6 17.7 ib 21.4 ib
    ib 3213 65 120 38.1 ib 1.5 80 73.5 ib
    3213-2 ZPO 65 120 38.1 ib 1.5 80 73.5 ib
    3213-2 IB 65 120 38.1 ib 1.5 80 73.5 ib
    ib 3313 65 140 58.7 ib 2.1 143 112
    3313-2 ZPO 65 140 58.7 ib 2.1 143 112
    3313-2 TSI 65 140 58.7 ib 2.1 143 112
    ib 3814 70 90 15 0.6 19.2 ib 23.8 ib
    3814-2 ZPO 70 90 15 0.6 19.2 ib 23.8 ib
    3814-2 TSİ 70 90 15 0.6 19.2 ib 23.8 ib
    ib 3214 70 125 39.7 ib 1.5 83 76.5 ib
    3214-2 ZPO 70 125 39.7 ib 1.5 83 76.5 ib
    3214-2 RS 70 125 39.7 ib 1.5 83 76.5 ib
    ib 3314 70 150 63.5 ib 2.1 143 166
    3314-2 ZPO 70 150 63.5 ib 2.1 143 166
    3314-2 TSİ 70 150 63.5 ib 2.1 143 166
    ib 3815 75 95 15 0.6 19.4 ib 24.4 ib
    3815-2 ZPO 75 95 15 0.6 19.4 ib 24.4 ib
    3815-2 TSİ 75 95 15 0.6 19.4 ib 24.4 ib
    ib 3215 75 130 41.3 ib 1.5 91.5 ua 85
    3215-2 ZPO 75 130 41.3 ib 1.5 91.5 ua 85
    3215-2 TSİ 75 130 41.3 ib 1.5 91.5 ua 85
    ib 3315 75 160 68.3 ib 2.1 146.7 ib 173.7 ib
    3315-2 ZPO 75 160 68.3 ib 2.1 146.7 ib 173.7 ib
    3315-2 TSİ 75 160 68.3 ib 2.1 146.7 ib 173.7 ib
    ib 3816 80 100 15 0.6 19.6 ib 25.5 ib
    3816-2 ZPO 80 100 15 0.6 19.6 ib 25.5 ib
    3816-2 TSİ 80 100 15 0.6 19.6 ib 25.5 ib
    ib 3216 80 140 44.4 ib 2 98 93
    3216-2 ZPO 80 140 44.4 ib 2 98 93
    3216-2 RS 80 140 44.4 ib 2 98 93
    3 316-M 80 170 68.3 ib 2.1 158.4 ib 190.8 ib
    3217 ib 85 150 49.2 ib 2 112 150
    3217-2 ZPO 85 150 49.2 ib 2 112 150
    3217-2 IB 85 150 49.2 ib 2 112 150
    3317 - M 85 180 73 3 171 205.2 ib
    ib 3218 90 160 52.4 ib 2 125 170
    3218-2 ZPO 90 160 52.4 ib 2 125 170
    3218-2 RS, ib 90 160 52.4 ib 2 125 170
    3 318-M 90 190 73 3 194.4 ib 247.5 ib
    3219 - M 95 170 55.6 ib 2.1 140 186
    3 319-M 95 200 77.8 ib 3 198 256.5 ib
    3220 - M 100 180 60.3 2.1 144 201.6 ib
    3 320-M 100 215 82.6 ib 3 212.4 ib 288
    3221 - M 105 190 65.1 ib 2.1 162 220.5 Nws
    3222 - M 110 200 69.8 ua 2.1 183.6 ib 252
    3 322-M 110 240 92.1 ib 3 243 351
