30/6-2RS Ob Chav Kab Angular Sib cuag Pob Bearing
30/6-2RS Ob Chav Kab Angular Sib cuag Pob Bearingnthuav dav Specifications:
Metric series
Khoom siv: 52100 Chrome Hlau
Kev tsim kho: Ob Kab
Hom foob : 2RS, kaw rau ob sab
Seal khoom: NRB
Lubrication: Great Phab Ntsa Tsav Cov Kabmob Roj 2 #, 3 #
Qhov kub thiab txias: -20°rau 120°C
Limiting ceev: 28000 rpm
Cage: Nylon tawb lossis steel tawb
Cage Khoom: Polyamide (PA66) los yog Hlau
Qhov hnyav: 0.01 kg

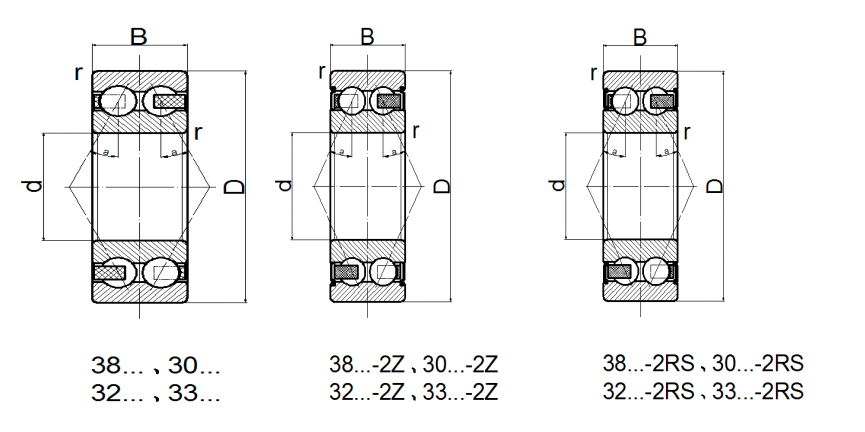

Main Dimensions:
Qhov taub (d): 6mm
Sab nraud txoj kab uas hla (D): 17mm
Dav (B): 9mm
Chamfer Dimension (r) min.: 0.3 hli
Dynamic load ntsuam xyuas (Cr): 3.1KN
Static load ntsuam xyuas (Cor): 1.42KN
ABUTMENT DIMENSION
Yam tsawg kawg nkaus txoj kab uas hla ncej xub pwg (da) min. mm:8 ib
Qhov siab tshaj plaws txoj kab uas hla ntawm lub xub pwg nyom (Da) max. : 15mm
Qhov siab tshaj plaws fillet radius (ra) max. 0.3mm ib
